sell kubota track parts slewing bearing

Short Description:

Slewing bearing also known as slewing ring bearing,turntable bearing.It contain outer ring,inner ring,rolling body,seals.The material of our products are generally high alloy-structural steels ,such as 42CrMo 50Mn.The slewing bearing can work normally at a temperature of -30℃ to +70℃,and we can design special type as customer need.

Send email to us Download as PDF

Product Detail

Product Tags

Excavator Slewing Bearings features

1. Can bear a comprehensive load

2. Bearing type: External gear, internal gear, withour gear

Type: Slewing bearing

Bore size: 170mm

Outside diameter: 330mm

Bore size range: 179-7, 000mm

Outside diameter range: 179-7, 000mm

Feature: External gear, internal gear and withour gear

Seals type: Rubber gasket, iron or high temperature seal

Loading capacity: Heavy-duty

Size: Large diameter

Material: Good-quality 50Mn, 42CrMo

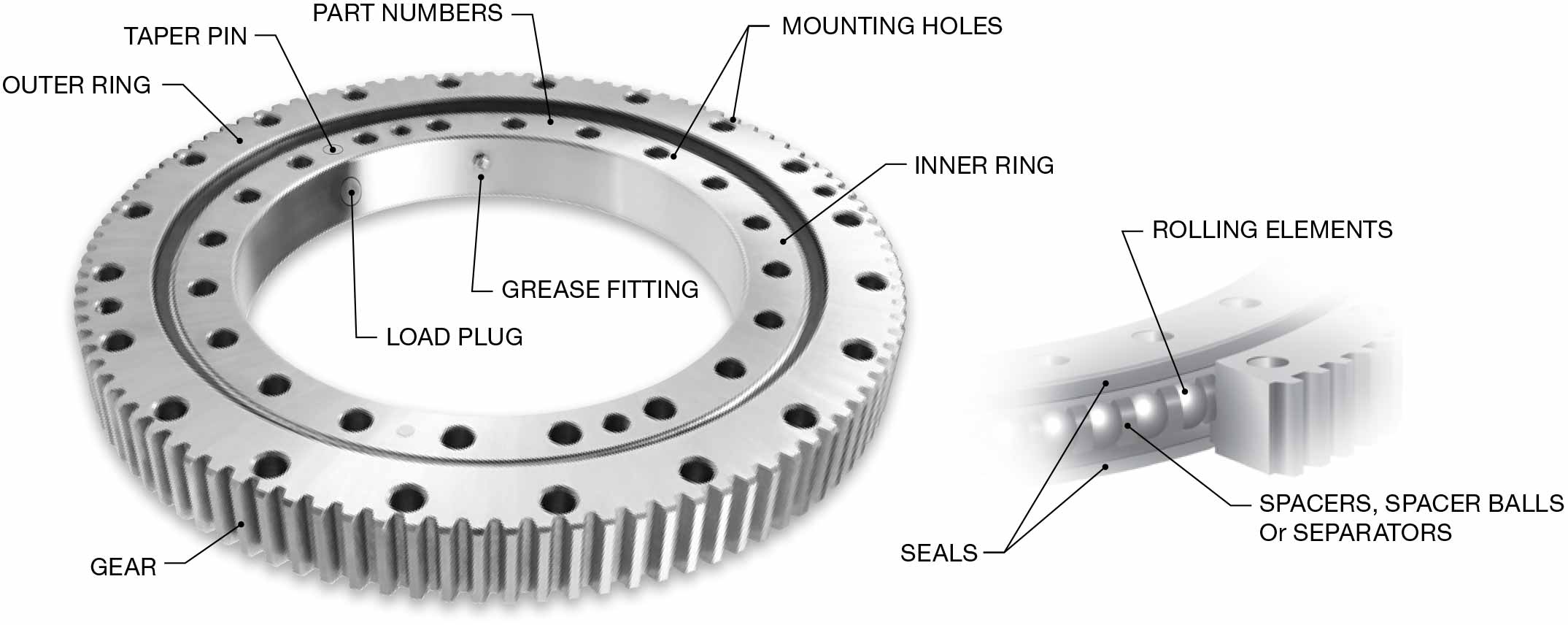

Slewing Bearings structure

What we can supply Slewing Bearings parts

Dimension List of Slewing Bearing For Excavators
No	Model	Outer Diamete	Inner Diamete	Total Height	Outer Height	Inner Height	Outer Ring Holes	Inner Ring Holes	Teeth
1	PC60-6(Z=76)	806	596	74	59	61	24-Φ18.5	24-Φ18.5 equal	76
2	PC60-6(Z=80)	852	627	75	58	62	24-Φ18	24-Φ18 equal	80
3	PC60-7(Z=76)	806	594	74	59	61	23-Φ18	24-Φ18 equal	76
4	PC60-7(Z=80)	852	627	75	58	62	22-Φ18	24-Φ18 equal	80
5	PC90-6	852	627	75	58	62	24-Φ18	24-Φ18 equal	80
6	PC100-5	1111	873	75	65	63	38-Φ18	38-Φ18 equal	89
7	PC120-5	1111	873	75	65	63	38-Φ18	38-Φ18 equal	89
8	PC120-6(4D95)	1111	882	77	65	64	34-Φ18	38-Φ18 equal	90
9	PC120-6(4D102)	1106	884	75	65	64	34-Φ18	38-M16 equal	90
10	PC150-5	1189	922	83	73	67	26-Φ22	30-Φ22 equal	94
11	PC20HT	1242	916	107	90	95	16-Φ24	36-Φ24 equal	78
12	PC200-1	1242	915	100	90	90	22-M20	36-Φ24 equal	78
13	PC200-2	1209	916	95	80	85	22-Φ24	36-Φ24 equal	78
14	PC200-3	1303	1085	104	83	90	26-M22	36-M20 equal	110
15	PC200-5	1302	1083	110	86	90	26-M24	36-M20 equal	110
16	PC220-3	1303	1085	104	83	90	26-M22	36-M20 equal	110
17	PC220-5	1302	1083	110	86	90	26-M24	36-M20 equal	110
18	PC200-6(S6D95)	1323	1083	100	77	90	32-Φ26	36-M20 equal	110
19	PC200-6(S6D102)(1)	1323	1083	100	77	90	32-Φ24	36-M20 equal	110
20	PC200-6(S6D102)(2)	1323	1083	100	77	90	32-Φ24	36-M20 equal	110
21	PC220-6(S6D95)	1323	1083	100	77	90	32-Φ26	36-M20 equal	110
22	PC220-6(S6D102)	1323	1083	100	77	90	32-Φ24	36-M20 equal	110
23	PC200-7(1)(Z=110)	1323	1083	100	77	90	32-Φ24	36-M20 equal	110
24	PC200-7(2)(Z=92)	1323	1073	112	77	102	32-Φ24	36-M22 equal	92
25	PC220-7	1323	1073	112	77	102	32-Φ24	36-M22 equal	92
26	PC228	1324	1083	100	77	90	40-Φ23.5	36-M20 equal	110
27	PC300-2	1470	1140	137	100	110	34-Φ26	36-Φ26 equal	83
28	PC300-3	1526	1236	122	87	110	35-M24	40-M24 equal	90
29	PC300-5	1526	1236	122	97	110	35-M24	40-M24 equal	90
30	PC300-6	1532	1235	125	95	113	35-Φ26	40-M24 equal	90
31	PC300-7	1532	1235	125	95	113	35-Φ26	40-M24 equal	90
32	PC400-3	1550	1236	147	108	135	35-M24	40-M24 equal	90
33	PC400-5	1550	1238	152	108	140	35-Φ26	40-M24 equal	84
34	PC400-6	1563	1240	152	108	140	35-Φ29	40-M24 equal	84
35	PC450	1563	1240	152	108	140	35-Φ29	40-M24 equal	84
36	EX60-1	781	554	78	60	65	24-Φ18 equal	24-Φ18 equal	71
37	EX60-2	781	554	78	60	65	24-Φ18 equal	24-Φ18 equal	71
38	EX60-3	781	554	78	60	65	24-Φ18 equal	24-Φ18 equal	71
39	EX60-5	774	554	78	60	65	24-Φ18 equal	24-Φ18 equal	71
40	EX90	993	764	80	62	68	28-Φ18	36-Φ18 equal	78
41	EX100-1	1195	962	86	72	70	36-Φ19 equal	36-Φ17 equal	98
42	EX100-3	1092	862	84	68	70	36-Φ20 equal	36-Φ18 equal	88
43	EX100-5	1092	862	84	68	70	36-Φ20 equal	36-Φ18 equal	88
44	EX120-1	1195	962	86	72	70	36-Φ19 equal	36-Φ17 equal	98
45	EX120-2	1092	862	84	68	70	36-Φ20 equal	36-Φ18 equal	88
46	EX120-3	1092	862	84	68	70	36-Φ20 equal	36-Φ18 equal	88
47	EX120-5	1092	862	84	68	70	36-Φ20 equal	36-Φ18 equal	88
48	ZX120	1090	860	86	68	70	30-Φ20	36-Φ18 equal	88
49	ZX160	1312	1081	106	72	95	32-Φ21	36-M20*1.5 equal	92
50	EX200-1	1312	1084	106	75	95	36-Φ22 equal	36-M20 equal	92
51	EX200-2	1312	1084	106	72	95	36-Φ22 equal	36-M20 equal	92
52	EX200-3	1312	1084	106	72	95	36-Φ22 equal	36-M20 equal	92
53	EX200-5	1312	1084	106	72	95	36-Φ22 equal	36-M20 equal	92
54	EX210-5	1312	1084	106	72	95	36-Φ22 equal	36-M20 equal	92
