Forging segment group for Shantui bulldozer SD13,SD16,SD22,SD23,SD24,SD32,SD42,SD52

Short Description:

1. Material: Alloy Steel, Carbon Steel, Stainless Steel, Hardend & Tempered Steel, Cast Iron,Aluminum, Copper, Brass and so on
2. Heat Treatment: Hardening and Tempering, High Frequency Quenching, Carburizing Quenching and so on.
3. Inspection: All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
4. Durable, Good Wear Resistance


Product Detail

Product Tags

Segment group Product Information

Material 40SiMnTi
Finish Smooth
Colors Black or yellow
Technique Forging casting
Surface Hardness HRC52-58
Warranty time 2000 hour
Certification ISO9001-9002
FOB Price FOB Xiamen USD 200-2000/Piece
MOQ $4500.00
Delivery Time Within 30 days after contract established



Design / Structure / Details Pics

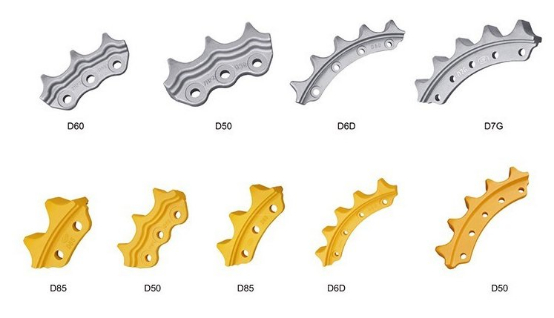

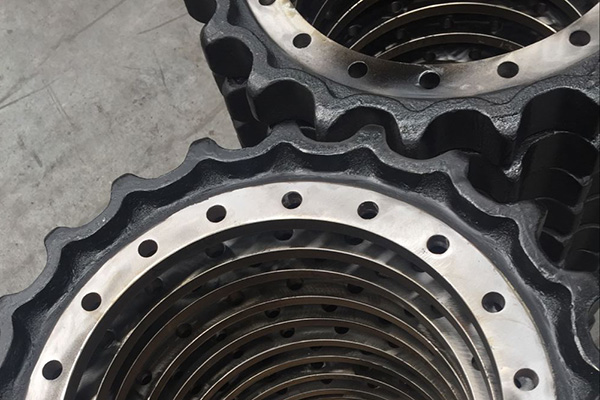

Sprocket (12)493



Advantages / Features:

Undercarriage is adopting through hardening system and spraying quenching system while complying with the stringent ISO System. We are able to assure the part has excellent wear resistance even in the most severe working conditions.

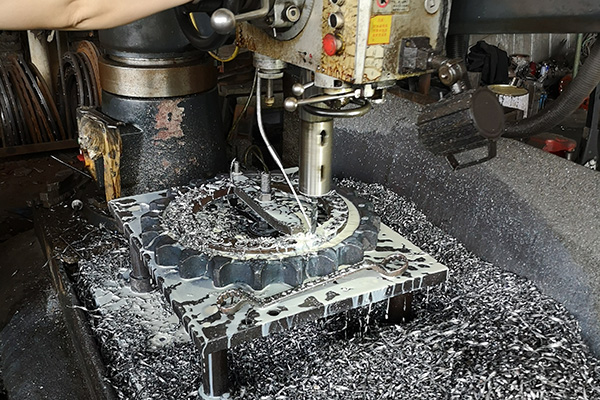

We are using advance machining centre,horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the qulity and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.



segment list :

Machine Segment Part No Group Part No Berco No Qty/Group Availability
CATERPILLAR
D4H 6Y5245 7G0841 CR4373 5 in stock
D4H-HD 1080946 CR5601 5 in stock
D5,D5B,953B 6Y5244 7P2636 CR4408 9 in stock
D6C/D(5/8"H),963 8P5837 6P9102 CR3330 5 in stock
D6C/D(3/4"H),963 1171616 1171618 CR5476 5 in stock
D6H 6Y2931 7G7212 CR4879 5 in stock
D6R,D6H-HD 1730945 8E9041 CR5515 5 in stock
D6M,D6N 6I8077 6I8078 CR5875 5 in stock
D7F,D7G,977L 6T4178 3P1039 CR3148 5 in stock
D7H,D7R,D8N,D8R 7T9773 9W0074 CR4532 5 in stock
D8K,D8K 6T6782 2P9510 CR3144 9 in stock
D9R 7T1247 7T1246 CR4686 5 in stock
D10N 1299208 6T9538 CR5047 5 in stock
KOMATSU
D50 131-27-61710 KM788 KM788 9 in stock
D60/D65 141-27-32410 KM162 KM162 9 in stock
D65EX-12 14X-27-15112 KM2111 KM2111 9 in stock
D68ESS-12 134-27-61631 5 in stock
D85 154-27-12273 KM224 KM224 5 in stock
D85EX-12 154-27-71630 9 in stock
D155 175-27-22325 KM193 KM193 9 in stock
D355 195-27-12467 KM341 KM341 9 in stock
D375 195-27-33111 5 in stock
SHANTUI
SD13 10Y-18-00043 5 in stock
SD16 16Y-18-00014H 9 in stock
SD22 154-27-12273A 5 in stock
SD23 154-27-12273A 5 in stock
SD24 156-18-00001 9 in stock
SD32 175-27-22325A 9 in stock
SD42 31Y-18-00014 9 in stock
SD52 185-18-00001 5 in stock

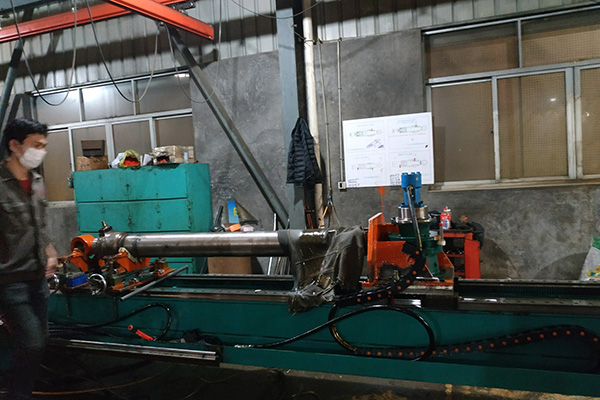

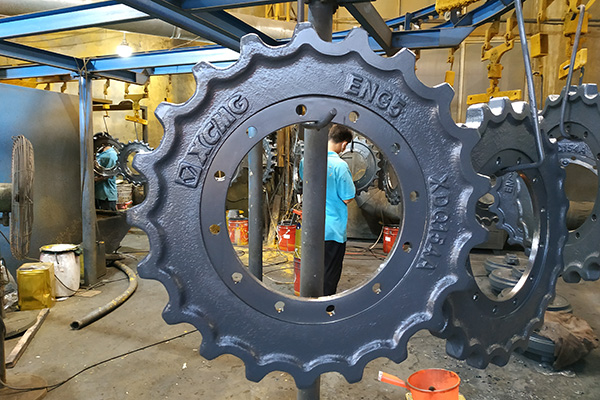

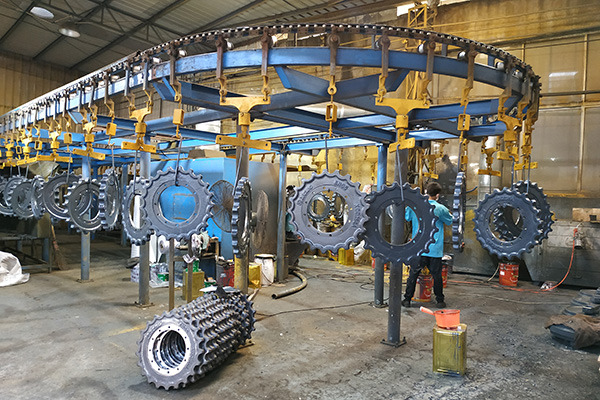

Products factory

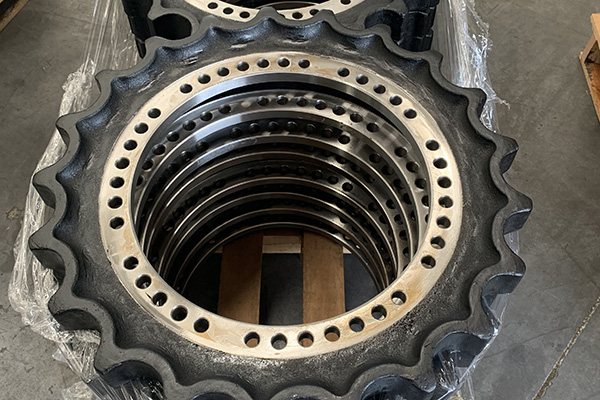

Products show

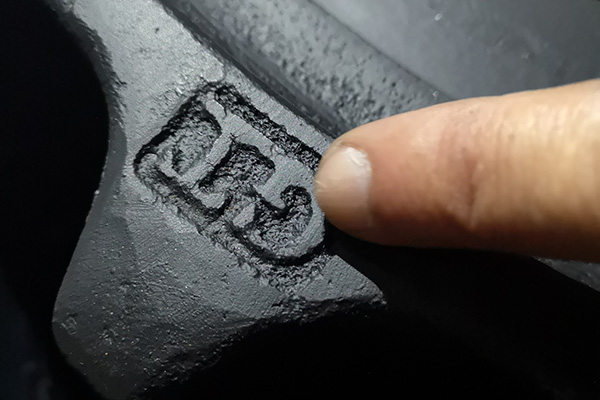

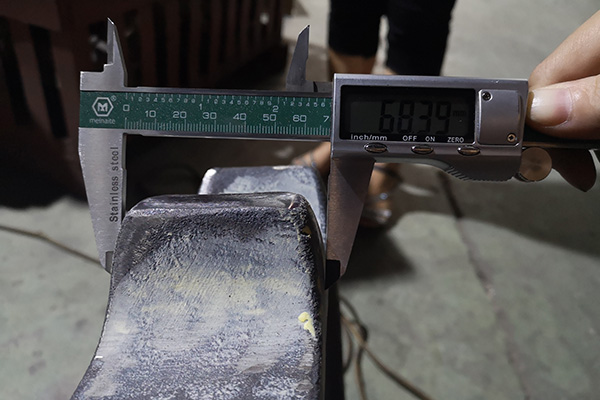

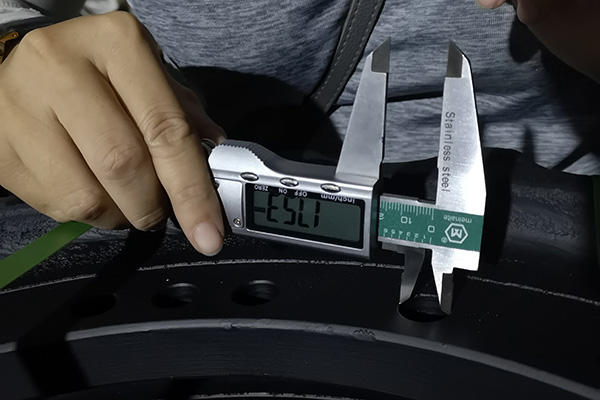

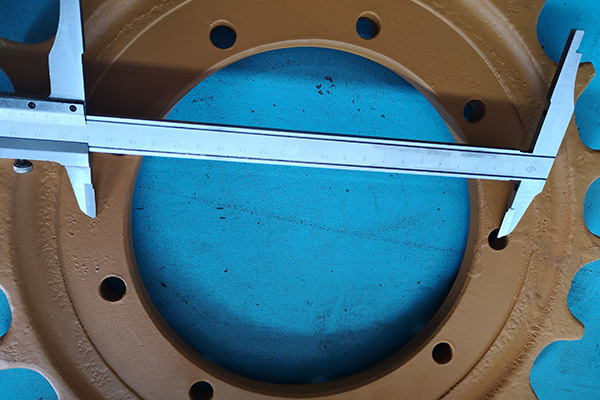

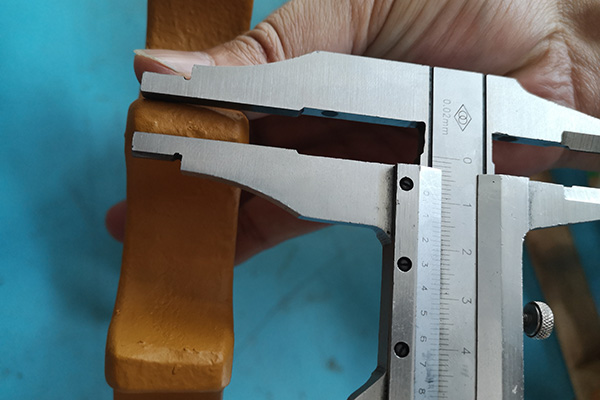

Products testing

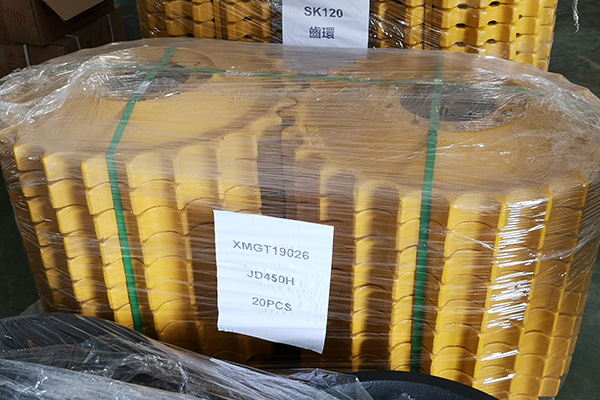

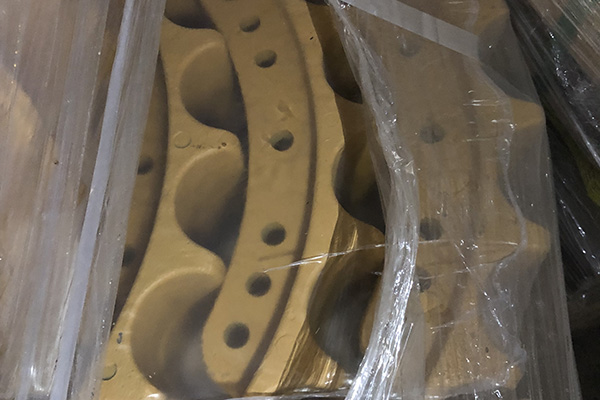

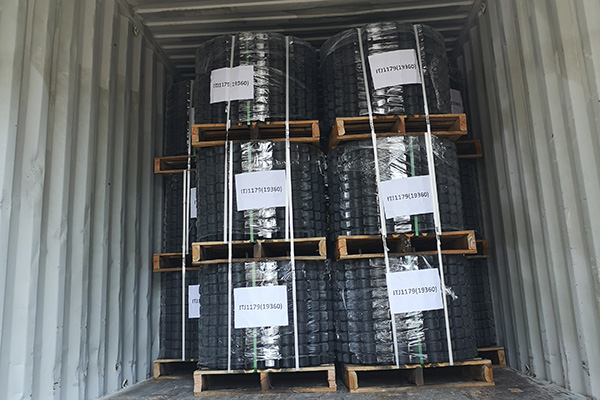

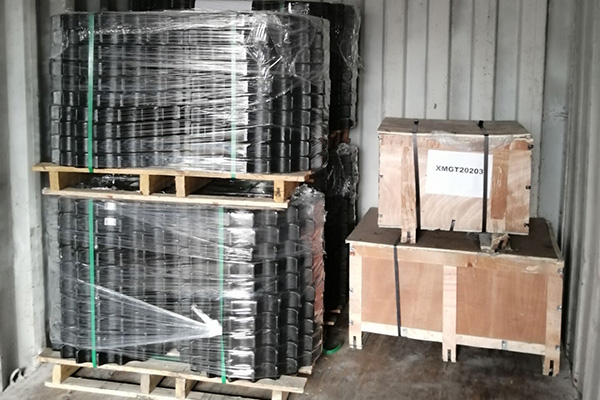

Products packing and shipping

Products factory

Products show

Products testing

Products packing and shipping
