Sell high quality cheap price Q345 Steel E320 rock bucket

Short Description:

Categories and main differences of buckets:
1. General buckets: standard bucket materials and good quality homemade tooth holders
2. Reinforced buckets: high quality structural steel with high strength and good quality homemade tooth holders
3. Rocky buckets: wear resistant steel with high strength, reinforced high stress parts, thicker abrasive parts, reinforcing ribs at bottom, and rock-oriented SBIC products from South Korea*


Product Detail

Product Tags

rock bucket

Specifications

Material:HARDOX400,Q345B etc.
Type: Standard/ Heavy-duty/Rocky
Weight: OEM
Size: Custom available/standard size
Product name: Excavator buckets

1. Drawing : We can manufacture exavator buckets according to your drawing!

1

6. Chemical components:

Comparation of Chemical Components and Mechanical Performaces of Three Material
Material Code Main Chemical Components Brinell Hardness(HB) Tensile Stretch
(%)
Tensile Strength Yield Strength
C Si Mn P S
Manganess Steel Plate Q345B 0.18 0.55 1.4 0.03 0.03 360 16 1200 1020
Domestic Wear-resistant Steel Plate NM400 0.25 0.7 1.6 0.03 0.01 370-430 10 1200 345
High Strength Wear-resitant Steel Plate HARDOX450 0.26 0.24 1.7 0.02 0.01 450-540 10 1400 1300

6. Products catalog:

Item

Material

Parts

Configuration &Capability

Fit Models

HD Bucket

Q345B

Adapter, Teeth,Side  cutter

  For 5-30T excavator.
Standard plate thickness like the original factory, domestic high quality tooth plate. cat307 312 320 ,R55 R210 PC200 PC220 EX120 EX200 EC160

Heavy duty Bucket

Q345B
Q460B

Adapter,Teeth,Side cutter,protector

Thicker plate, domestic high quality tooth plate which can extend the using time FOR 19-60T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250 350 460 EC210 240 290 360 700 etc

NM400
Q4600
Q345B

Adapter,Teeth,Side cutter,protector

Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending

Rock Bucket

NM500
NM400
Q345B

Adapter,Teeth,Side cutter,protector, wearing block

Consolidated plate on the bottom, enhance the thickness of side plate, and install protective board, so that it can resist grinding and bending efficiently.

FOR 20-100T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 800 1250 ZX 200 300 400 870 1200 SK200 210 250 350 460 EC210 240 290 360 700 etc

Heavy duty Rock Bucket

HARDOX400
NM500
NM400
Q345B

Adapter,Teeth,Side cutter,protector, wearing block

Add fixed plate on the bottom and side guard plates, install protection plates; the tooth adapters adopt rock-specific products, featuring strong wear resistance and bending resistance.

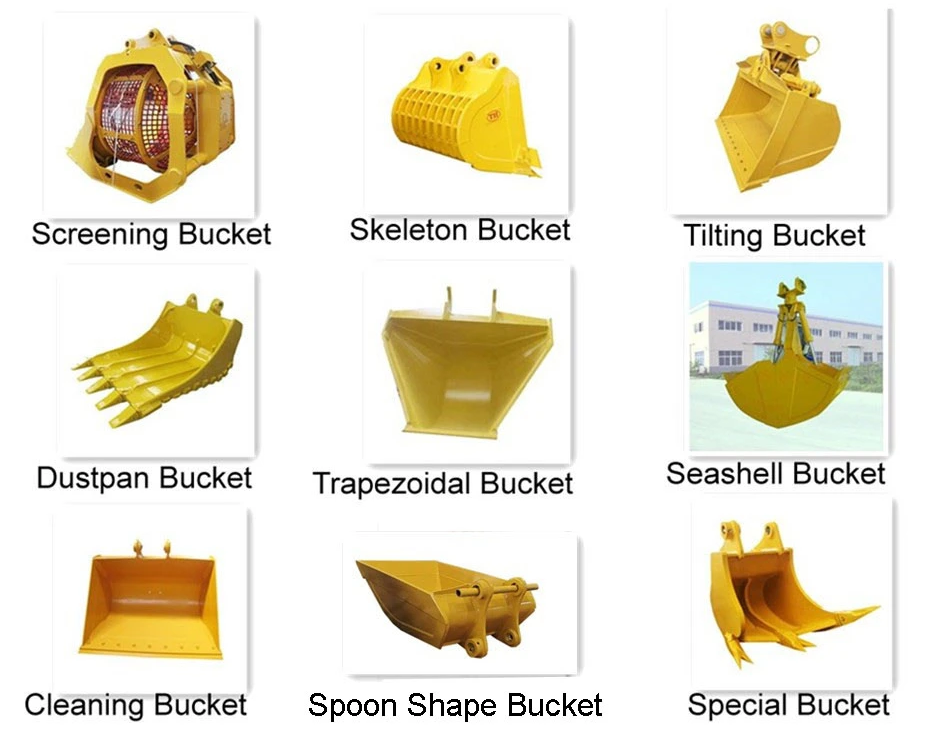

Special bucket

2



Raw material

semi finished product

Products show

Products packing and shipping
