Excavator Hydraulic Breaker Hammer Chisel

Short Description:

1. Selected raw material – high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. High energy and impact frequency (high performance)
5. High-performance optimized hydraulic unit
6. Low maintenance, less breakdown, long using life
7. Fully enclosed housing with robust structure
8. Vibration& noise damping system


Product Detail

Product Tags

Products description

1. Material: 40Cr or 42CrMo

2. Dimension: Depending on the specification of Tool Maker

3. Chisel type: Moil Point, Blunt Tool, Flat, wedge

4. Heat Treatment:
Austenting Temperature 810~850 (20min/inch)
Cooling Water oil cooling
Tempering 250~300 (1hr/inch)

5. Mechanical Properties:
Surface Hardness HRC51± 3
Core Hardness HRC35± 3
Tensile strength(min) 1250N/mm²
Yield point (min) 950N/mm²
Elongation 10~14%
Reduction of Area 35~40%
Impact work 23~28 ft1b
Grain size 7.0~8.0

Packaging & Shipping

Design and structure

breaker chisel

 We have hydraulic breaker chisel for following items



Krupp HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301,
HM400/401,HM550,HM560CS,HM580,HM600/601,HM700
RAMMER S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700,
S54/700,S55,S56/800,S82/1400
N.P.K H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA
INDECO MES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500
MONTABERT BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250,
RH501,BRH620, BRH625,BRH750,BRV32
STANLEY MB125,MB250/350,MB550,MB656,MB800,MB1550,
MB1950/1975,MB30EX,MB40EX
FURUKAWA HB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G
HB30G,HB40G,HB50G,
TOKU/TOYO TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101,
OKADA  OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318,
SOOSAN SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,
SB100,SB121,SB130,SB151
KWANGLIM SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500,
DAEMO  DMB03,DMB04,DMB06,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V,S1800-V
HANWOO RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313,
DAINONG  D30,D50,D60,D70/90,D110,D130,D160,T180,K20
K25,K30,K50,K80,K120,K55S,K40S,

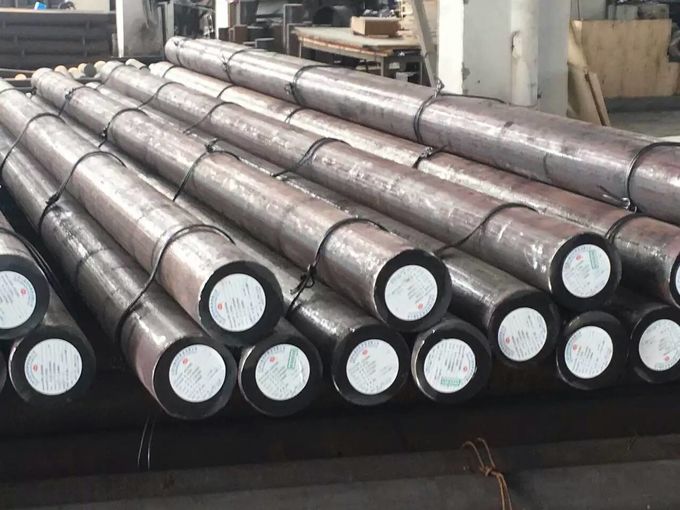

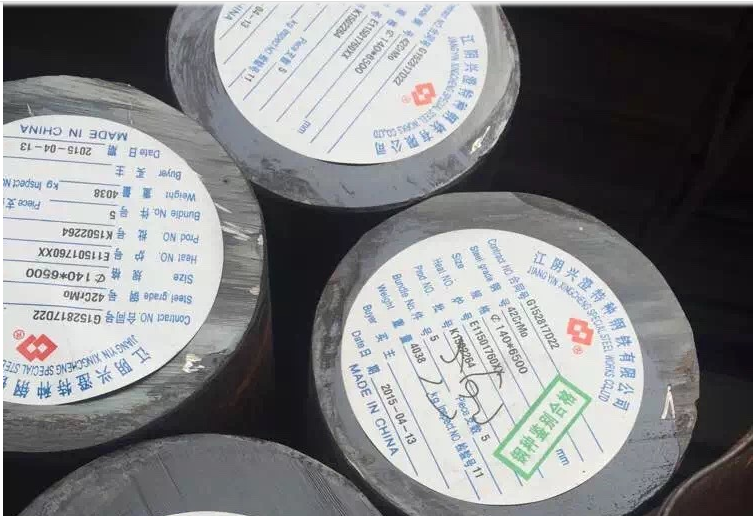

Material
