CATERPILLER D10N Track Link BoltsTrack Link Bolts
Machinery brand:CATERPILLAR
Machinery type:Dozers
model:D10N
Track chain CTHG0110N044
Weight:1994.00 Kg
CROSS REFERENCE (Original codes):
| BERCO | CR6075/44 |
| BERCO | CR6100/44 |
| CATERPILLAR | 6Y2059 |
| CATERPILLAR | 6Y8189 |
| CATERPILLAR | 8E7928 |
| ITM | G01100N1M00044 |
| ITM | G01100N1S00044 |
| VPI | VCR6075/44V |

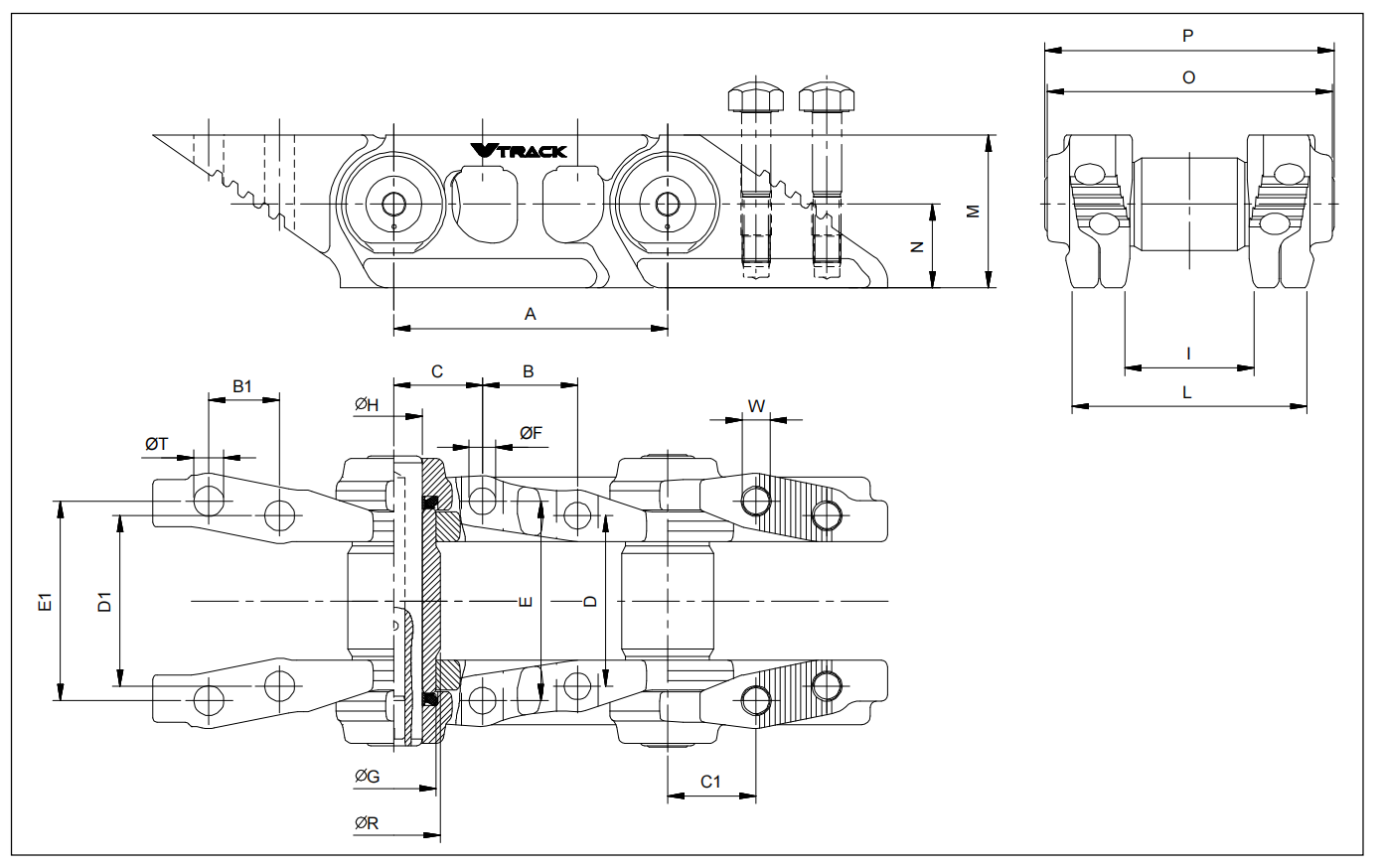

D10N Track Chain and LINK bolt
| D10N Track Chain(weight:1944kg) | |||
| PRODUCT FEATURES: | |||
| A:260,4 | B:80 | C:83 | B1:80 |
| C1:83 | N:105 | M:181 | D:190 |
| E:250 | D1:190 | E1:250 | L:293,4 |
| I:136 | ∅R:95 | ∅H:57,25 | ∅G:90,43 |
| ∅F:29,5 | ∅T:30 | P:316 | W:1+1/8''-12UNF |
| VG0110N044 TRACK CHAIN SALT P.P.R.TYPE COMPATIBLE WITH THE FOLLOWING VEHICLES: CATERPILLAR D10N 2YD-1-UP,D10N 3SK-1-UP, D10R 3KR-1-UP, D10R AKT-1-UP, D10T RJG-1-UP CROSS REFERENCE(ORIGINAL CODES): BERCO CR6075/44,CR6100/44CATERPILLAR6Y2059,6Y8189,8E7928ITM G01100N1M00044,G01100N1S00044VPI VCR6075/44V |
|||
| VD0110N15TRACK BOLT 1"1/8-12UNFX96 | |||

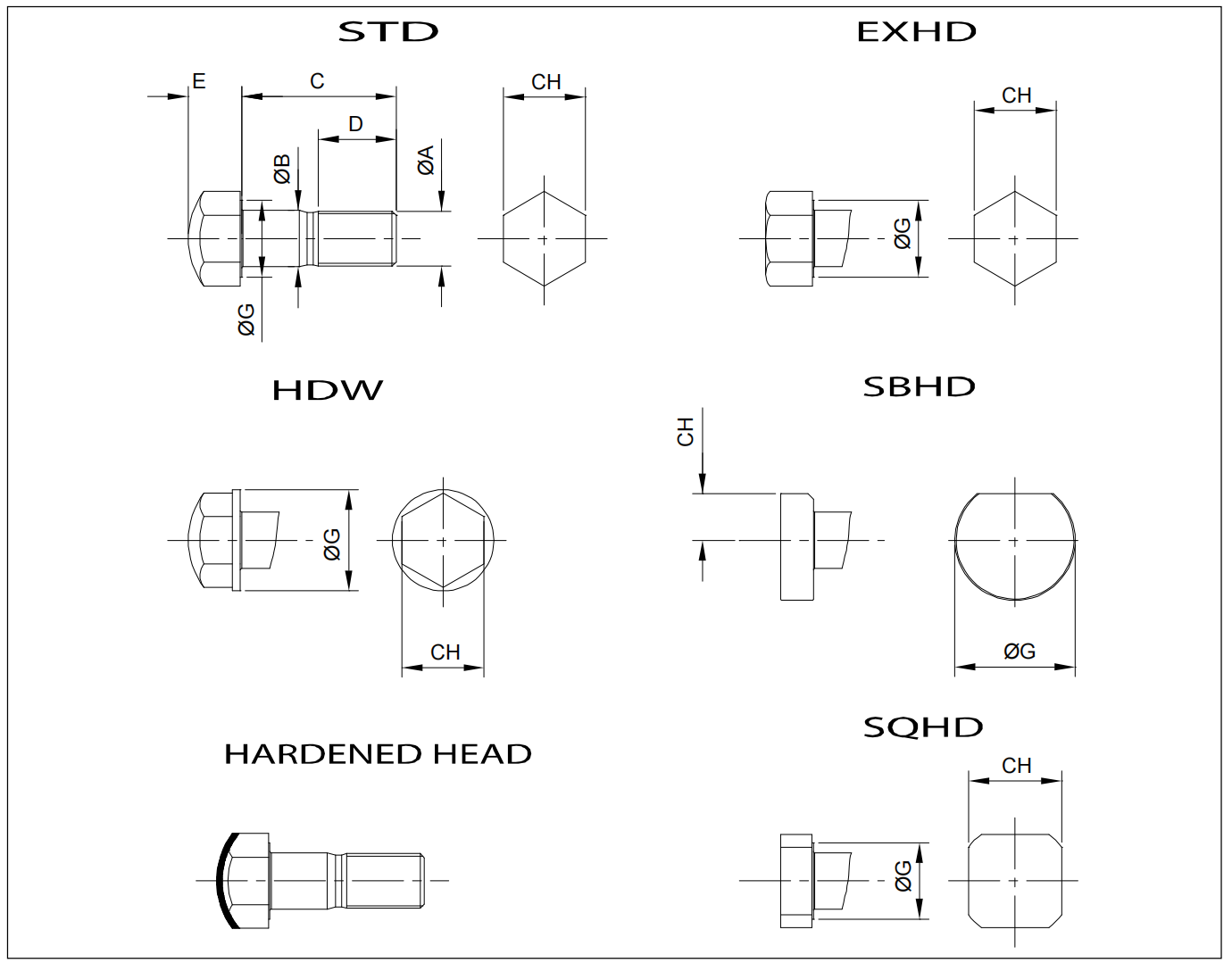

| D10N Track Link Bolts(weight:0.7kg) | |||
| PRODUCT FEATURES: | |||
| Type:STD | Hardened head： | Strength class: 12,9 | A:1''1/8 |
| Pitch:12UNF | B:29,15 | C:96 | D:43 |
| E:26,6 | CH:42,86 | G:42,86 | |
| VD0110N15 TRACK BOLT 1"1/8-12UNFX96 COMPATIBLE WITH THE FOLLOWING VEHICLES: CATERPILLAR D10N 2YD-1-UP,D10N 3SK-1-UP, D10R 3KR-1-UP, D10R AKT-1-UP, D10T RJG-1-UP CROSS REFERENCE (ORIGINAL CODES): BERCO CR5167 CATERPILLAR 7T1000 ITM D01100NON15 O-&-K-TEREX 2769128 VPI V7T1000 |
|||
