Excavator Attachment Screening Vibrating Skeleton Bucket

Short Description:

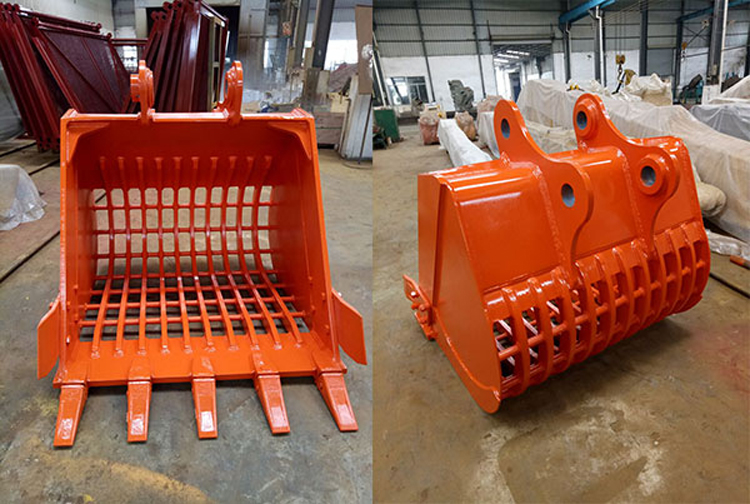

Skeleton Bucket
Features:Similar to Standard Bucket in design but with sieve bottom;Generally with larger capacity.

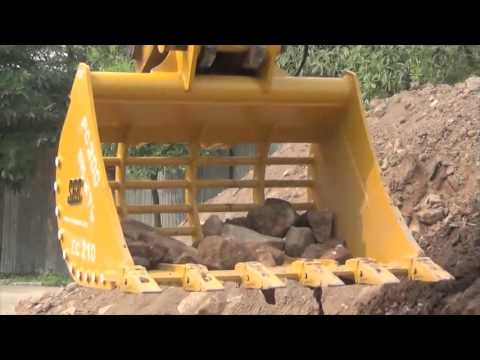

Applications:Digging and sorting materials of different size at once;widely applied to municipal work, agriculture, forestry, water conservancy and earthwork, etc

Send email to us Download as PDF

Product Detail

Product Tags

Excavator Bucket Series-----Tough Reliable and Durable

Excavator Bucket Series-----Tough Reliable and Durable
Type	Type	Specifications	Suitable Brands
Standard Bucket	Standard Bucket	Large bucket capacity, large stowing surface.	KOMASTU, CAT, HITACHI, VOLVO, SUMITOMO, KOBELCO, DOOSAN, CASE, KATO, HYUNDAI, JCB, LIEBHERR, KUBOTA, YANMAR, TAKEUCHI, IHISCE, SANY, JCM, SHANTUI, LOVOL, ZOOMLION, XCMG, LONKING, SDLG, LIUGONG
		Made top quality and high-strength structural steel. Using the China top quality bucket adaptors.
		Helping you to save the work time and improve work efficiency.
Rock Bucket	Rock Bucket	On the base of standard bucket, using high-strength wearable steel for high-stress and wearing parts.
Mine Bucket	Mine Bucket	On the base of rock bucket, adding more welding steel plate at the bottom part of the bucket, which will be more robustness.
Note: Please choose the bucket based on the construction condition, avoid reducing the service life or damage.

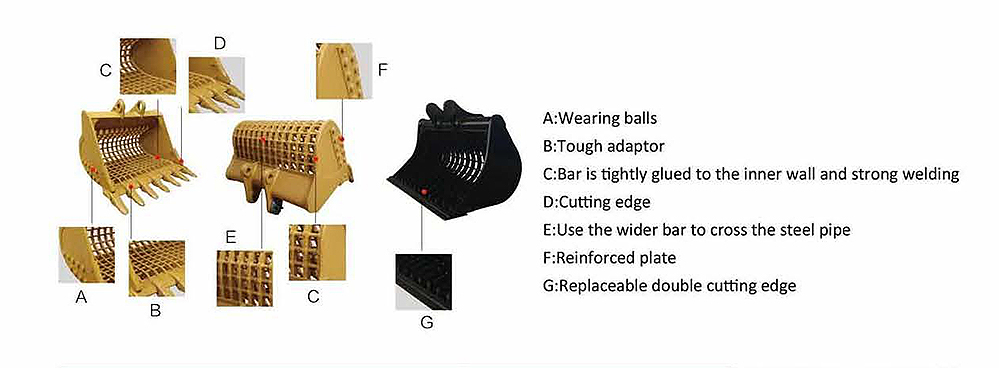

Skeleton Digging Bucket Description

Skeleton Digging Bucket Specifications

Machine Metric Tons	Width/In	Length/In	Height/In	Weight/In	Width/KG	Length/mm	Height/mm	Weight//Lbs
12	45	50	43	561	1,143	1,270	1,092	1,237
12	48	50	43	582	1,219	1,270	1,092	1,283
20	51	54	51	683	1,295	1,372	1,295	1,506
	54	54	51	845	1,372	1,372	1,295	1,863
	57	54	51	870	1,448	1,372	1,295	1,918
	58	54	51	875	1,473	1,372	1,295	1,929
	60	54	51	974	1,524	1,372	1,295	2,147
25	60	60	53	993	1,524	1,524	1,346	2,189
25	63	60	53	1,015	1,600	1,524	1,346	2,238
30	65	63	61	1,338	1,651	1,600	1,549	2,950
30	68	63	61	1,358	1,727	1,600	1,549	2,994

Skeleton Digging Bucket Capacity

Bucket capacity	Excavators
0.1-0.3m3	equipped for 5-6±tons
0.5-0.6m3	equipped for 14±tons excavators
0.9-1.1m3	equipped for 21±tons excavators
1.1-1.2m3	equipped for 24±tons excavators
1.2-1.4m3	equipped for 29±tons excavators
1.7-1.9m3	equipped for 36±tons excavators
2.1-2.6m3	equipped for 46±tons excavators
