Nemisys® tooth system – N1

Short Description:

The Nemisys® N1 Tooth System is designed for large excavators working in mining, quarrying, and heavy excavation environments. It provides a reliable solution for applications where bucket teeth are exposed to high impact, heavy loads, and continuous abrasion.

A well-designed tooth system plays an important role in bucket performance. The N1 system helps maintain good penetration, protect the bucket lip, and reduce unnecessary downtime caused by frequent tooth replacement.

Send email to us Download catalog

Product Detail

Product Tags

Product Overview

The Nemisys® N1 system includes:

Excavator bucket teeth
Adapters
Locking components
Related GET (Ground Engaging Tool) parts

It is commonly used on large mining excavators and heavy construction equipment where wear resistance and stable performance are essential.

Features & Benefits

Strong Wear Resistance

Made from high-strength alloy steel and processed with heat treatment, the N1 tooth system is built to handle tough working conditions such as rock, ore, and highly abrasive materials.

Benefits:

Longer service life
Reduced replacement frequency
Better performance in demanding applications

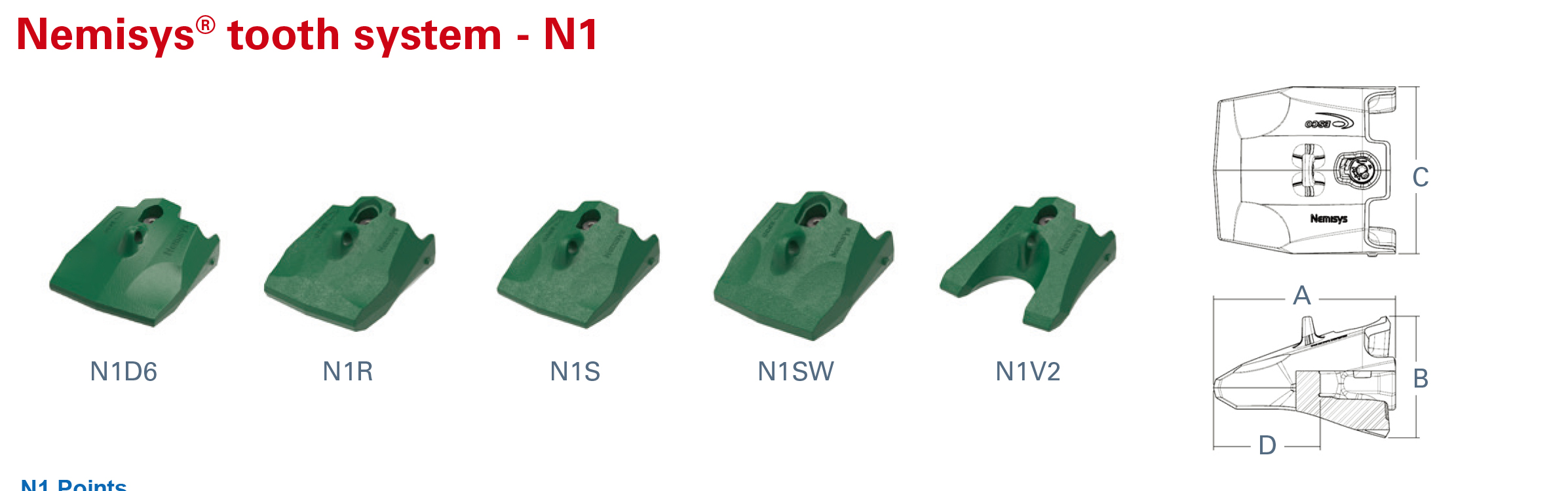

PMID	Description	Length A (mm)	Length A (in)	Height B (mm)	Height B (in)	Width C (mm)	Width C (in)	Bit Length D (mm)	Bit Length D (in)	Weight (kg)	Weight (lb)	Machine Type
N1D6	Drop Point	324	12.76	206	8.1	321	12.64	180	7.09	49	107	DL
N1R	Rock Point	350	13.76	234	9.2	321	12.64	202	7.94	74	163	HEX
N1S	Standard Point	322	12.67	206	8.1	321	12.63	178	6.99	53	117	HEX
N1SW	Standard Wear Cap Point	322	12.67	234	9.2	321	12.63	178	6.99	61	134	HEX
N1V2	Pick Point	338	13.3	206	8.1	344	13.56	193	7.61	50	110	HEX

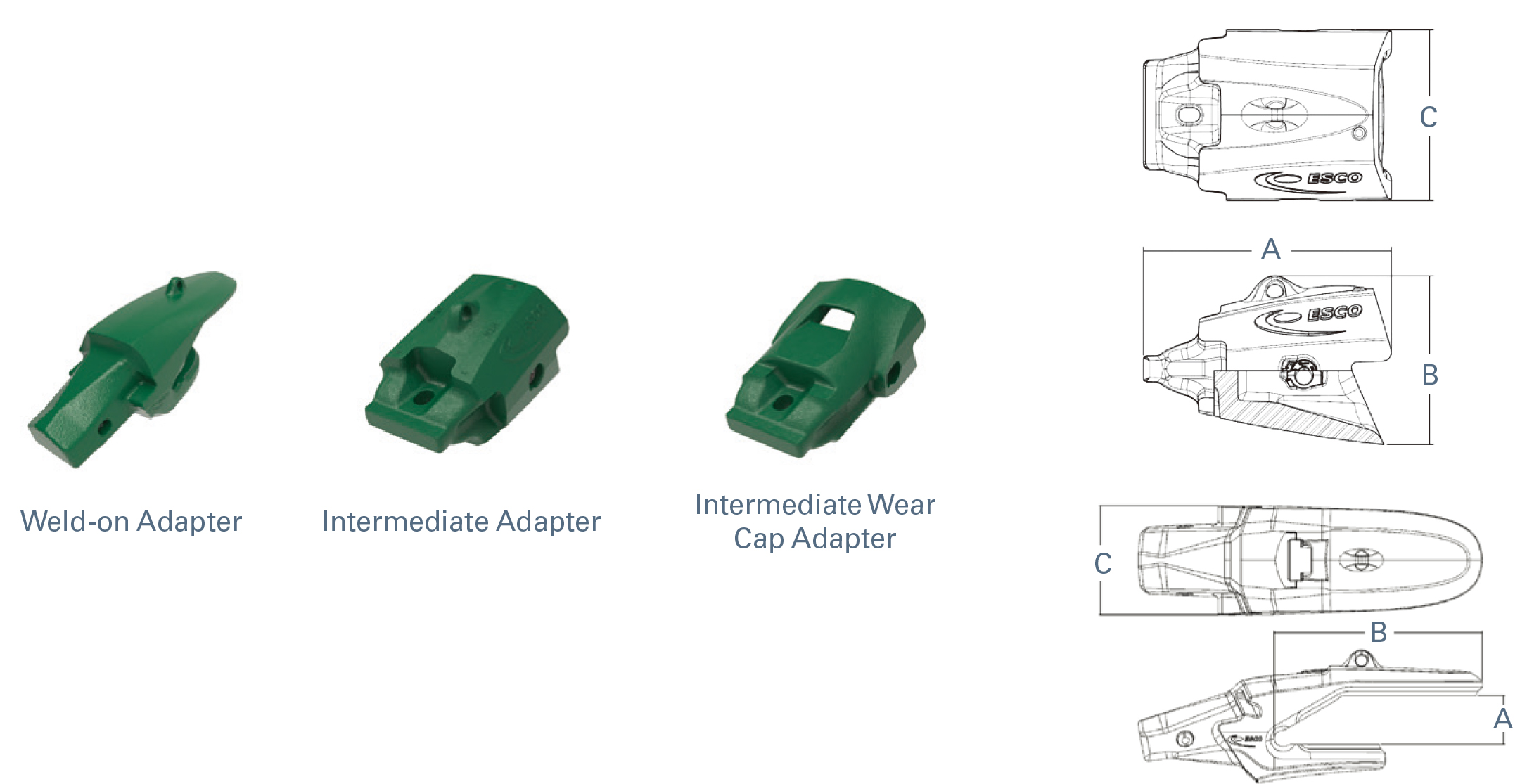

PMID	Description	Nose Size	Lip Thickness (mm)	Lip Thickness (in)	Length A (mm)	Length A (in)	Height B (mm)	Height B (in)	Width C (mm)	Width C (in)	Weight (kg)	Weight (lb)	Wear Cap
N1-5874	Weld-On Wear Cap Adapter	N1	140	5.5	1014	39.93	392	15.44	322	12.66	269	592	N1WC
N1-5874H	Weld-On Adapter	N1	140	5.5	1014	39.93	392	15.43	322	12.66	286	631	None
N1-5875	Weld-On Wear Cap Adapter	N1	159	6.25	1014	39.93	392	15.44	322	12.66	265	585	N1WC
N1-5875H	Weld-On Adapter	N1	159	6.25	1014	39.93	392	15.44	322	12.66	271	598	None
N1-S110H	Nemisys-Posilok Bridge Adapter	S110	--	--	468	18.44	326	12.83	336	13.22	136	299	None
N1-S110W	Nemisys-Posilok Bridge Wear Cap Adapter	S110	--	--	466	18.35	282	11.1	320	12.6	91	201	N1WC
N1H	Intermediate Adapter	N1	--	--	466	18.34	316	12.46	321	12.64	120	265	None
N1XHD	Intermediate Adapter Extra Heavy Duty	N1	--	--	466	18.34	346	13.61	321	12.64	141	311	None
N1W	Intermediate Wear Cap Adapter	N1	--	--	466	18.34	281	11.07	320	12.59	88	193	N1WC
