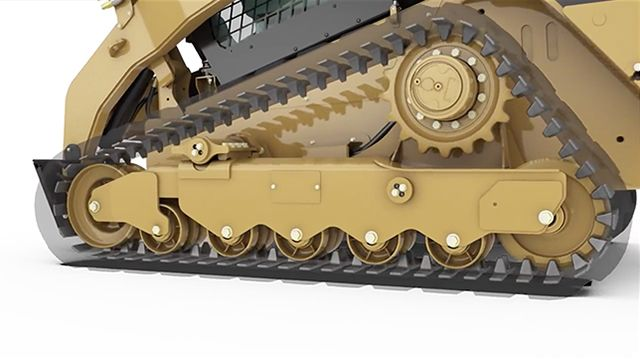

JCB 150-350T Compact Track Loader Undercarriage Parts

Short Description:

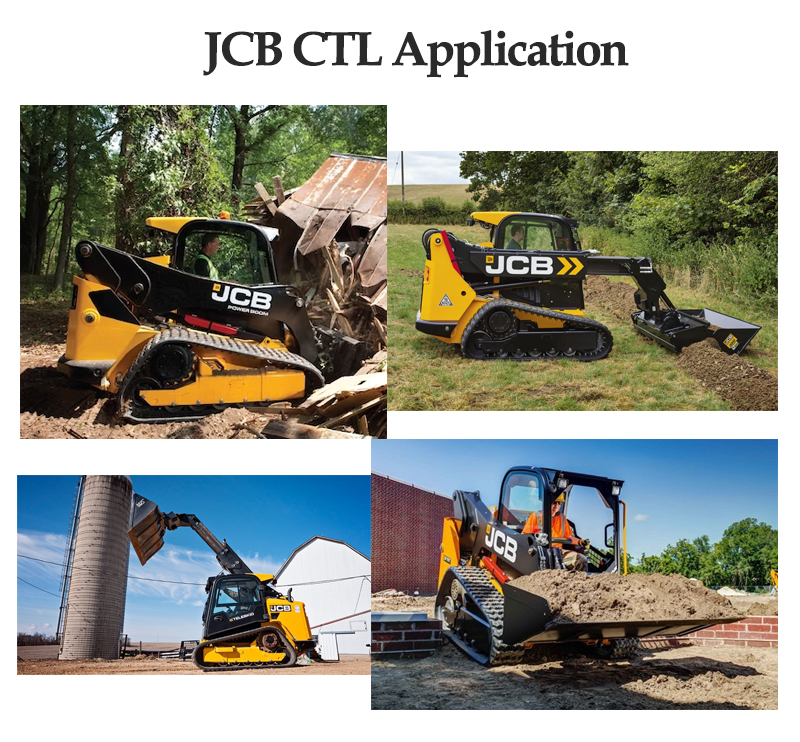

A compact track loader is a type of skid steer that runs on two parallel tracks instead of wheels. These machines are very similar in size to a skid steer and perform many of the same functions, but their weight and added traction make them better able to move over slippery or uneven terrain.

Send email to us Download as PDF

Product Detail

Product Tags

Which is better CTL or skid steer with tracks?

CTLs are typically around 12% to 20% higher than a skid steer. One of the things you're paying for with a CTL is heft. CTLs are heavier and because of this, they can push off better and they can lift more. With two long tracks on the ground, they offer more traction, which can be used for more efficient dozing.

What is the difference between CTL and MTL?

The Main Difference Between CTL and MTL Rubber Tracks. The main difference between CTL and MTL rubber tracks is that there is no steel forging in an MTL track. An MTL track is almost completely made of rubber without any rigid steel forces inside.

MAKE	MODEL	MACHINE TYPE	PART TYPE	RSC PART NUMBERS	OEM PART NUMBERS	DESCRIPTION
JCB	150T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	200T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	205T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	225T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	260T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	280T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	300T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	320T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	325T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	330T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	3TS-8T	CTL	ROLLER DF	R16213289 50312984	16213289 271020 332/P5845	Front Roller SF
JCB	150T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	200T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	205T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	225T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	260T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	280T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	300T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	320T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	325T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	330T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	3TS-8T	CTL	IDLER - FRONT	R16213439	16213439	Idler Front w/ Brkts
JCB	1110T Robot	CTL	SPROCKET	R2627000	331-21050	Sprocket 6BH
JCB	180T Robot	CTL	SPROCKET	R2627000	331-21050	Sprocket 6BH
JCB	190T Robot	CTL	SPROCKET	R2627000	331-21050	Sprocket 6BH
JCB	1110T Robot	CTL	ROLLER TF	R47378992 87480419	87535297 87447228 CA925	Roller TF
JCB	180T Robot	CTL	ROLLER TF	R47378992 87480419	87535297 87447228 CA925	Roller TF
JCB	190T Robot	CTL	ROLLER TF	R47378992 87480419	87535297 87447228 CA925	Roller TF
JCB	JS70 (type 1)		ROLLER TOP	R9153288	9153288 AT315315 LK327	Roller Top
JCB	JS70 (type 2)		ROLLER TOP	R9153288	9153288 AT315315 LK327	Roller Top
JCB	150T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	200T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	205T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	225T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	260T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	280T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	300T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	320T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	325T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	330T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	3TS-8T	CTL	IDLER - FRONT	RAT366458	AT366458 AT322755 ID2076	Idler Front
JCB	150T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	200T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	205T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	225T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	260T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	280T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	300T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	320T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	325T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	330T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	3TS-8T	CTL	ROLLER TF	RAT366460 RAT336091	AT366460 AT336091 ID2802	RAT366460 Roller TF ID2802
JCB	1110T Robot	CTL	IDLER - FRONT	RLK424	332/U6561	Idler w/Brkts
JCB	180T Robot	CTL	IDLER - FRONT	RLK424	332/U6561	Idler w/Brkts
JCB	190T Robot	CTL	IDLER - FRONT	RLK424	332/U6561	Idler w/Brkts
JCB	1110T Robot	CTL	IDLER - REAR	RLK438	332/U6563	Idler Rear
JCB	180T Robot	CTL	IDLER - REAR	RLK438	332/U6563	Idler Rear
JCB	190T Robot	CTL	IDLER - REAR	RLK438	332/U6563	Idler Rear
JCB	225T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	260T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	280T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	300T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	320T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	325T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	330T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	3TS-8T	CTL	SPROCKET	RLK588	LK588 16213266	Sprocket 18T 6BH
JCB	150T	CTL	SPROCKET	RLK618	LK618 17230314 332/X6779	Sprocket 17T 12BH
JCB	200T	CTL	SPROCKET	RLK618	LK618 17230314 332/X6779	Sprocket 17T 12BH
JCB	205T	CTL	SPROCKET	RLK618	LK618 17230314 332/X6779	Sprocket 17T 12BH
