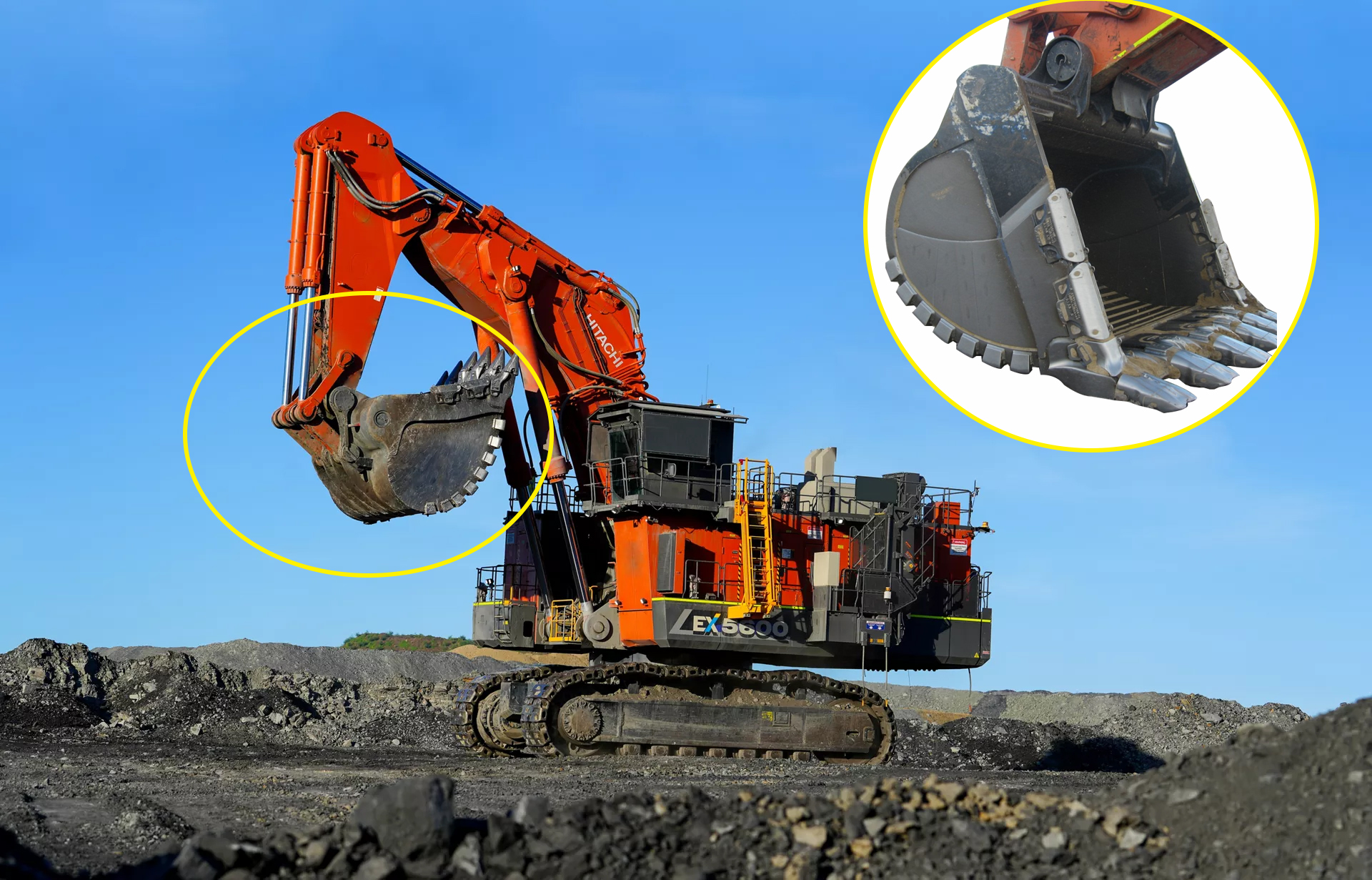

Hitachi EX5600 Bucket For Hitachi Excavator
Bucket Specifications
| Configuration | Capacity (ISO) | Breakout Force | Max Dump Height | Max Dig Depth |
| Backhoe | 34 – 38.5 m³ | ~1,480 kN | ~12,200 mm | ~8,800 mm |
| Loading Shovel | 27 – 31.5 m³ | ~1,590 kN | ~13,100 mm | N/A |
Machine Weight: Approx. 537,000 kg
Engine Output: Dual Cummins QSKTA50-CE engines, each rated at 1,119 kW (1,500 HP)
Operating Voltage (Electric version): Optional 6,600 V for EX5600E-6
Bucket Design and Material Engineering
Construction: Heavy-duty steel plate with reinforced welds and high-abrasion liners
Wear Protection: Replaceable GET (Ground Engaging Tools) including cast lips, teeth, and corner adapters
Optional Features: Side wall protectors, spill guards, and top covers for highly abrasive material
GET Brands Supported: Hitachi OEM and third-party (e.g., JAWS, Hensley)

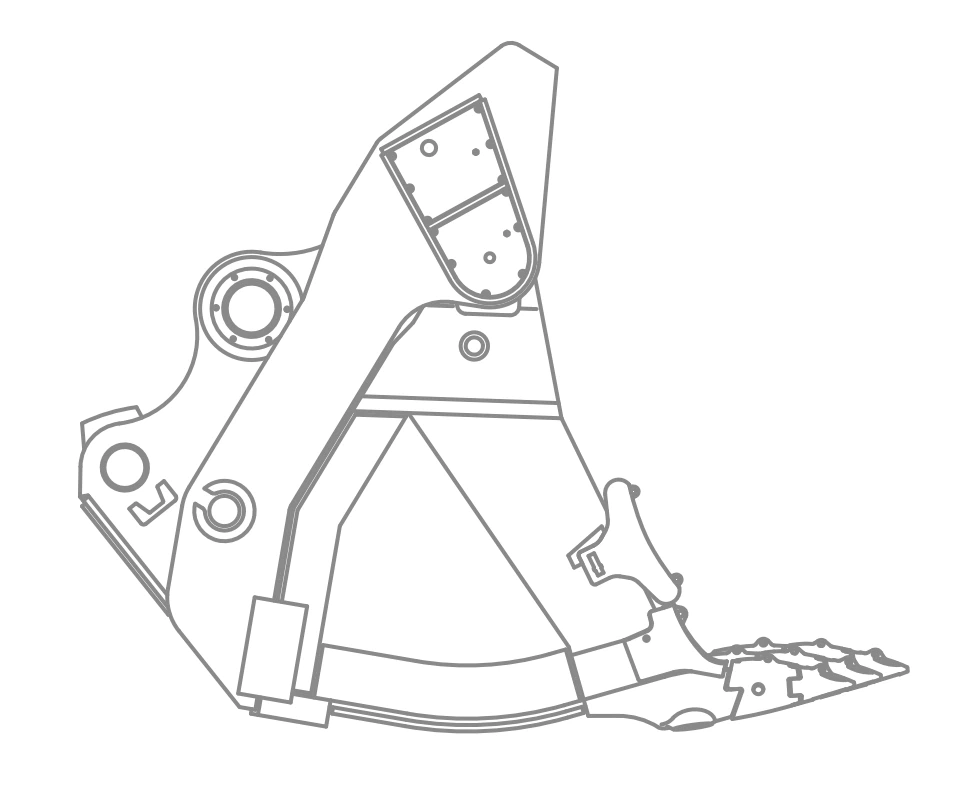

LOADING SHOVEL
LOADING SHOVEL
The Loading Shovel attachment is equipped with an auto-leveling crowd mechanism that controls the Hitachi EX5600 bucket at a constant angle. Complete with floating pin and bush, the bucket has been specifically designed to enhance loading capability with a tilt angle that enhances operational efficiency.
EXCAVATING FORCE：
Arm crowding force on ground：
1 520 kN (155 000 kgf, 341,710 lbf)
Bucket digging force：
1 590 kN (162 000 kgf, 357,446 lbf)

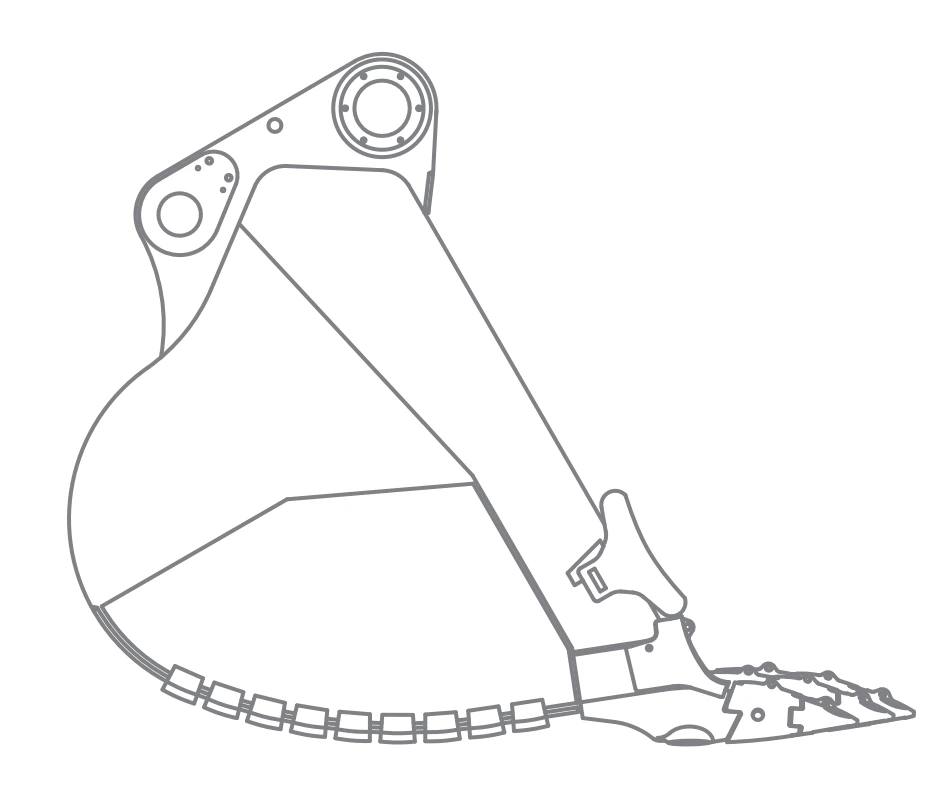

BACKHOE
BACKHOE
The Backhoe attachment is designed using computer aided box frame analysis to determine the optimal structure for integrity and longevity. Complete with floating pin and bush, Hitachi EX5600 buckets are designed to match the geometry of the attachment to maximize productivity.
EXCAVATING FORCE：
Arm crowding force on ground
1 300 kN (133 000 kgf, 292,252 lbf)
Bucket digging force
1 480 kN (151 000 kgf, 332,717 lbf)
EX5600 Bucket Model we can supply
| Model | EX5600-6BH | EX5600E-6LD | EX5600-7 |
| Operating weight | 72700 - 74700 kg | 75200 kg | 100945 kg |
| Bucket capacity | 34 m³ | 29 m³ | 34.0 - 38.5 m3 |
| Digging force | 1480 kN | 1520 kN | 1590 kN |

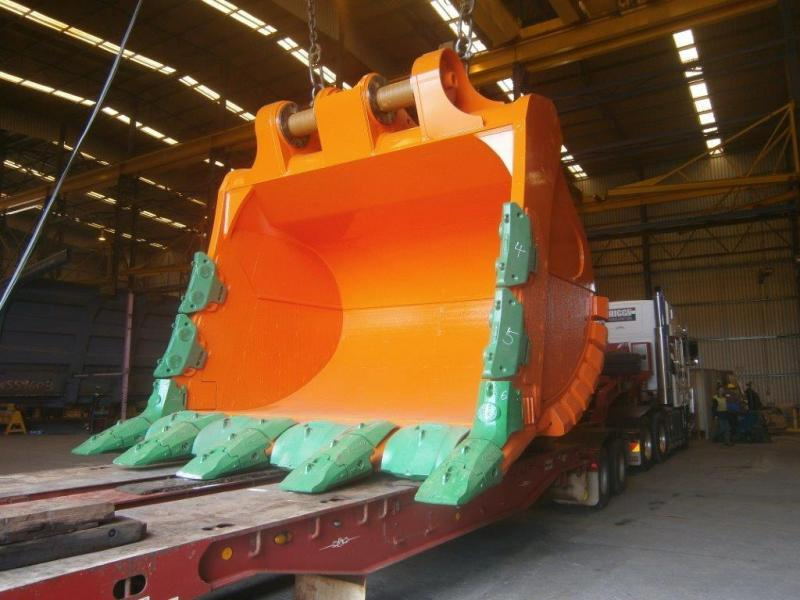

EX5600 Bucket Shipping
