VTRACK PC200-2 Track Roller Carrier Roller

Short Description:

Track Roller body materials are generally 50Mn, 40Mn2, and other materials. The main process is casting or forging, machining, and then heat treatment. The hardness of the wheel surface after quenching should reach HRC45~52 to increase the wear resistance of the roller surface. The processing accuracy of the supporting roller shaft is relatively high, and generally it needs to be processed by CNC machine tools to meet the requirements. The material is mostly 40Mn2, and after processing, quenching heat treatment is also required, and the hardness reaches about HRC42

Send email to us Download catalog

Product Detail

Product Tags

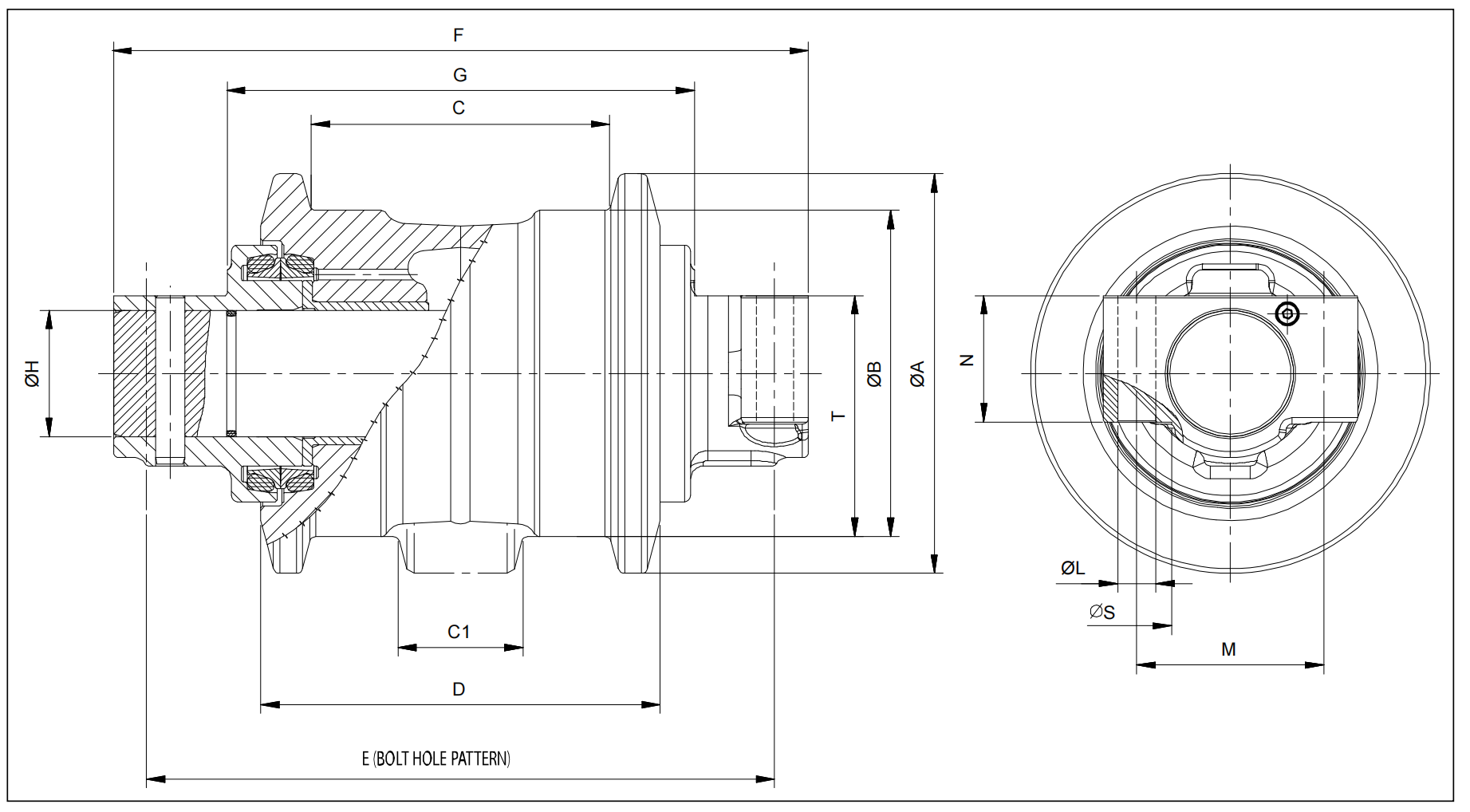

PC200-2 Track Roller SF

Weight：39kg

PRODUCT FEATURES:
ΦA:193	ΦB:1640	C:175	D：232
E:310	F:360	G:239	ΦH:65
ΦH1	ΦL:18	M:110	N:55
ΦA1	C1	T:116.5

COMPATIBLE WITH THE FOLLOWING VEHICLES:
KOMATSU
PC100L 3, PC150-1, PC150LC -1, PC180LC -3, PC180LLC-3, PC180NLC-3, PC200-2, PC220-1, PC220-2, PC220LC-2,PC240-3, PC240LC-3

CROSS REFERENCE (ORIGINAL CODES):
BERCO
KJ1179,KM1179
ITM
A40200LOM00
KOMATSU
205-30-00171, 205-30-00172, 205-30-76101, 20Y-30-00010
VPI
VKM1179V

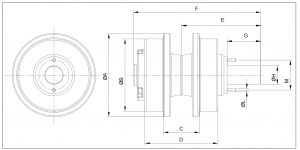

PC200-2 Carrier Roller

PRODUCT FEATURES:
ΦA:19365	ΦB:140	C:82	D:170
E:191	F:290	G:70	ΦH:55
ΦL:	M:	N:	T:
P:	Tipo:

COMPATIBLE WITH THE FOLLOWING VEHICLES:

HYUNDAI
R160LC 3, R160LC-7, R160LC-7A, R160LC-9, R160LCD-7, R160LCD-9, R160LD-9, R180LC-3 553 UP, R180LC-3 UPTO 552, R180LC-7, R180LC-7A, R180LC-9, R200-3, R200LC-3, R200NLC-3 00025 AND UP, R20ONLC-3 UP TO 00024, R210-3, R210LC-3, R210LC-7 00056 TO 0091, R210LC-7 00092 UP, R210LC-7 UP TO 0055, R210LC-7A,R210LC-7H, R210LC-7L, R210LC-7R, R210LC-9, R210LC-9S, R210NLC-7, R210NLC-9, R220LC-7, R220LC-9A, R235LCR-9, R250LC-3, R250LC-7, R250LC-7A, R250LC-7C, R250LC-7H, R250LC-9, R250NLC-3, R250NLC-7, R260LC-9

KOMATSU
BR200J-1 1001-1200, BR200J-1 1201-1301, BR200J-1 1302 UP, BR200R-1, BR200S-1 1001-1100, BR200T-1A,BR250RG-1, BR300J-1, BR310JG-1, PC100L 3, PC100L 5, PC100L 6, PC150 1, PC150 3, PC150HD 5, PC150LC 1, PC150LC 3, PC150LC 5, PC150LC 6, PC150NHD 5, PC160 6, PC180LC 3, PC180LC 5, PC180LC 5K 2001 UP, PC180LC 6K 3001 UP, PC180LLC 3, PC180LLC 5, PC180NLC 3, PC180NLC 6, PC200 2, PC200 3 20001-33762, PC200 3 33763-UP, PC200 5, PC200 6, PC200EL 6, PC200LC 3 20001-33883, PC200LC 3 33884-UP, PC200LC 5, PC200LC 6, PC210 3, PC210 5, PC210LC 5, PC210LC 6, PC220 1, PC220 2, PC220 3 20001-23302, PC220 3 23303UP, PC220 5, PC220 6, PC220LC 2, PC220LC 3 20001-23302, PC220LC 3 23303-UP, PC220LC 5, PC220LC 6,PC228UU 1, PC230 6, PC230LC 6, PC240 3, PC240 5, PC240 6, PC240LC 3, PC240LC 5, PC240LC 6, PC240NLC 6

MITSUBISHI
MS280 1

TIMBERJACK
TJ653

CROSS REFERENCE (ORIGINAL CODES):
BERCO
KM1640

HYUNDAI
81EL-20030, 81EM-10030, 81EM-10030-01, 81EM-13010, 81WM-17030ITMC40201AOM00

KOMATSU
204-30-00020, 204-30-00040, 205-30-00043, 205-30-00190, 205-30-K1200, 205-30-K1300, 20-30-00020, 20 30-00021, 20Y-30-00022, 20Y-30-08030SAMSUNG-H.I.1030-10041

SANY
B229900000160

VPI
VKM1640V

Testing

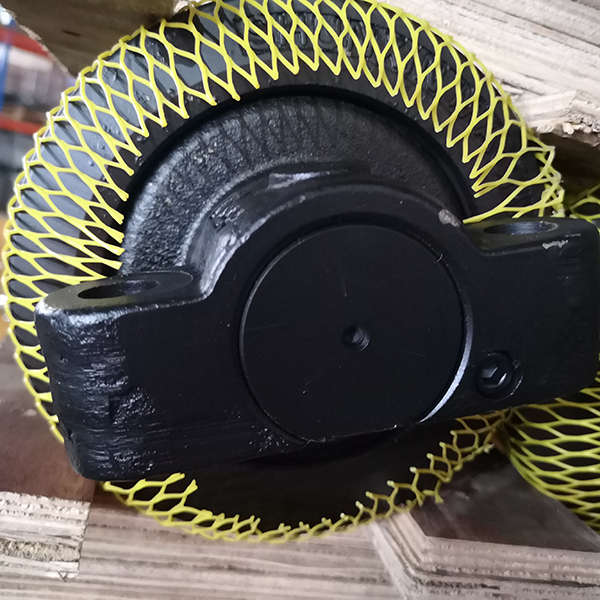

Packing

Description	OEM Spare parts number
Track roller	17A-30-00070
Track roller	17A-30-00180
Track roller	17A-30-00181
Track roller	17A-30-00620
Track roller	17A-30-00621
Track roller	17A-30-00622
Track roller	17A-30-15120
Track roller	17A-30-00070
Track roller	17A-30-00170
Track roller	17A-30-00171
Track roller	17A-30-00610
Track roller	17A-30-00611
Track roller	17A-30-00612
Track roller	17A-30-15110
Track roller	175-27-22322
Track roller	175-27-22324
Track roller	175-27-22325
Track roller	17A-27-11630 (GруPPа SegmentоV)
Track roller	175-30-00495
Track roller	175-30-00498
Track roller	175-30-00490
Track roller	175-30-00497
Track roller	175-30-00770
Track roller	175-30-00499
Track roller	175-30-00771
Track roller	175-30-00487
Track roller	175-30-00485
Track roller	175-30-00489
Track roller	175-30-00488
Track roller	175-30-00760
Track roller	175-30-00480
Track roller	175-30-00761
