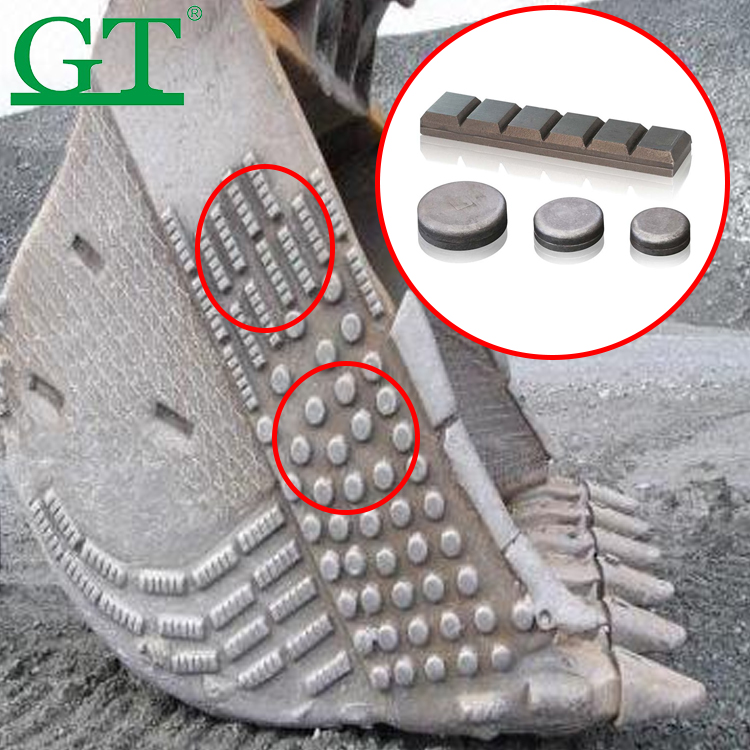

CB25-CB80 Chocky Wear Bar and WD75-WD148 Wear Button
1.Material:
ASTM A532 15/3 CrMo white iron, mild steel base
2. Chemical composition
| C | Cr | Mn | Mo | Cu | P | Si | S |
| 2.5-3.5 | 15-18 | 0.5-1.0 | 0.5-2.5 | 0.5-1.0 | 0.02max | 0.5-1.0 | 0.02max |
3.Mechanical Property
1) Tensile Strength: 630Mpa Min.
2) Shearing Strength: 250Mpa Min.
3) Hardness: 63HRC Min.
4.Wear Button
| Item No. | Size(mm) | Dimension(mm) | N.W.(kg) | ||||
| A | B | C | D | E | |||
| WD 75 | Ø75x25 | 75 | 25 | 17 | 8 | 25 | 0.7 |
| WD 100A | Ø100x25 | 100 | 25 | 17 | 8 | 50 | 1 |
| WD 100B | Ø100x32 | 100 | 32 | 24 | 8 | 70 | 1 |
| WD 130 | Ø130x23 | 130 | 23 | 15 | 8 | 80 | 1.3 |
| WD 148 | Ø148x35 | 148 | 35 | 25 | 10 | 108 | 2.2 |
5.Chocky Wear Bar
| Item No. | Size(mm) | Diemsnion(mm) | N.W.(kg) | ||||
| A | B | C | D | E | |||
| CB 25 | 240x25x23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB 40 | 240x40x23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB 50 | 240x50x23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB 65 | 240x65x23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB 80 | 240x80x23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB 90 | 240x90x23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB100 | 240z100x23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB 130 | 240x130x23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB 150 | 240x150x23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
The standard thickness of chocky bars is 23 mm, standard length is 240 mm,
width could be from 25mm from 150mm.We can also produce according to your special requests.

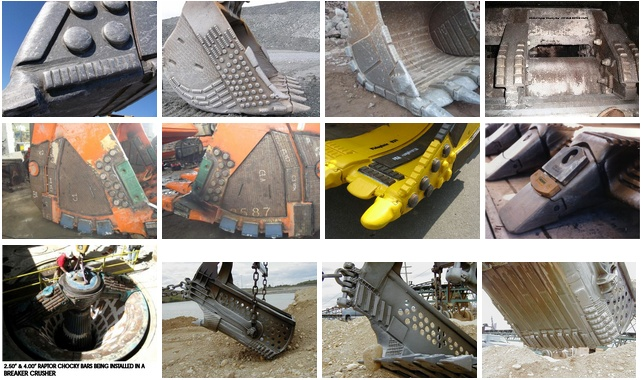

6.Chocky Wear Bar and Wear Button Application
