Idler for Bauer Drilling Rig Compatible with BG15 BG23 BG25BG33 BG36 BG40 BG45 BG50 BG55 BG60 BG65

Short Description:

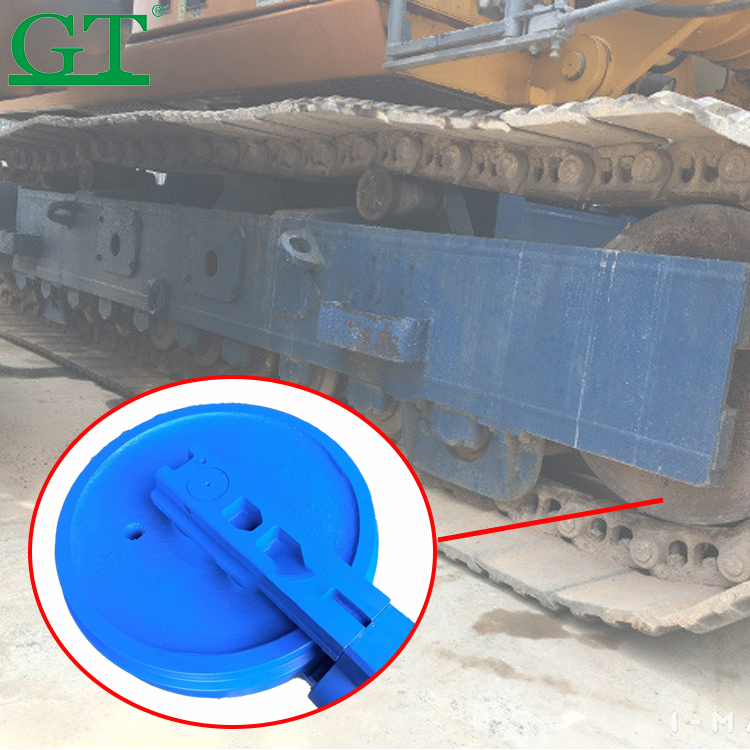

The Idler for Bauer Drilling Rigs is a vital front-end component of the undercarriage system. Its primary function is to guide and support the track chain while maintaining proper track tension. Our idlers are manufactured from premium alloy steel, undergo forging, precision CNC machining, and heat treatment, and are assembled with sealed bearings to ensure high impact resistance and reliable long-term performance even in the most demanding drilling conditions.

This idler is a direct replacement for original Bauer parts and is suitable for a wide range of models in the BG series, offering an ideal solution for both replacement and fleet maintenance.

Send email to us Download catalog

Product Detail

Product Tags

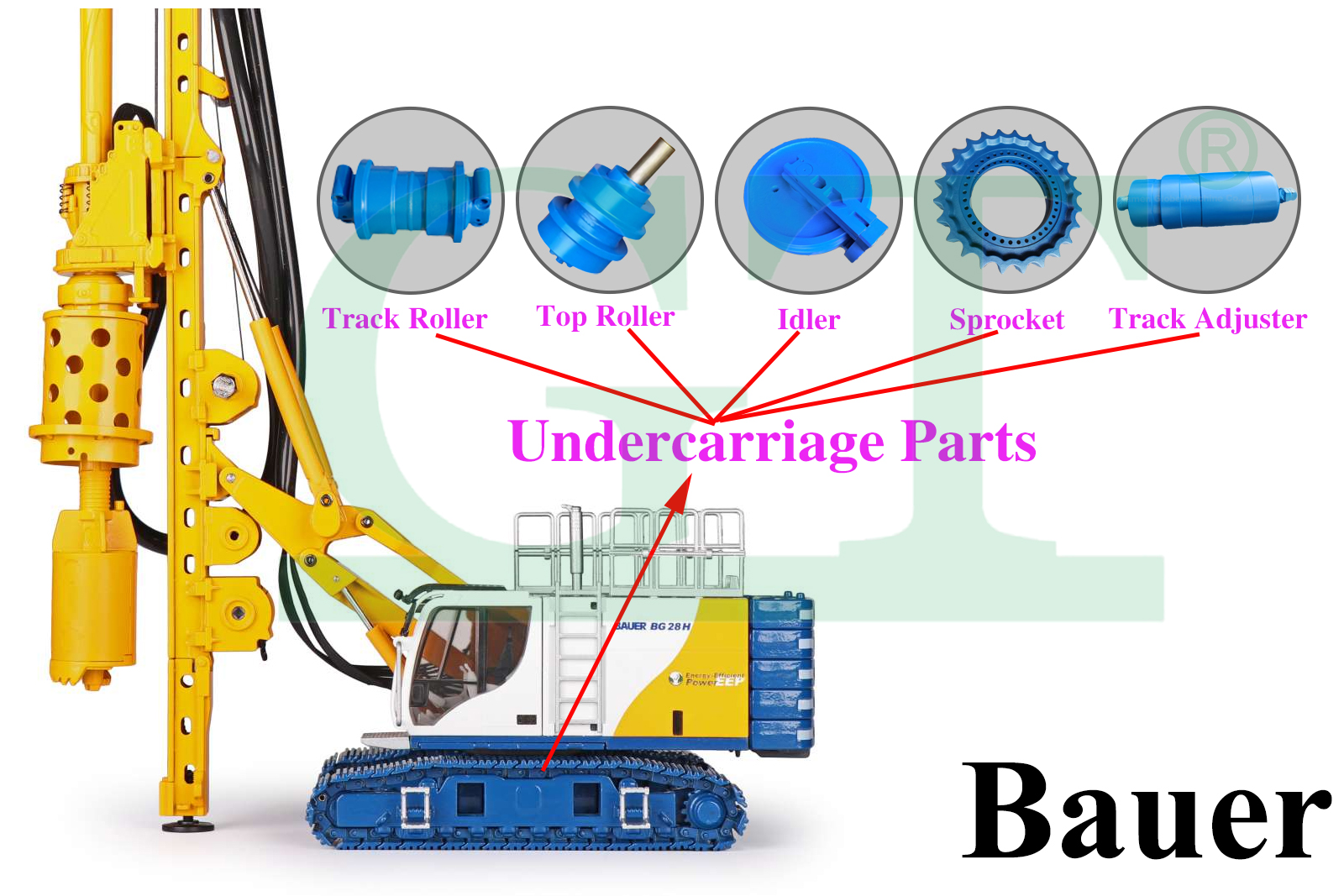

Bauer Idler Description

Item Specification

Product Name Idler for Bauer Drilling Rig
Material : 35Mn / 42CrMo / Customized Alloy Steel
Processing Forged : + CNC Machined + Heat Treated
Surface Hardness : HRC 50-58 (after hardening)
Heat Treatment : Depth 5-8 mm
Structure : Double-flange or single-flange (as needed)
Bearing Type : Sealed & lubricated, maintenance-free
Surface Finish : Anti-rust primer / Black oxidation / Custom
OEM / ODM : Available

Technical Specifications
Parameter	Value	Standard
Material	Forged 40Mn2 alloy steel	DIN EN 10083-17
Load Capacity	Static 6T / Dynamic 4T	ISO 63367
Working Pressure	280 bar	DIN 2458
Temperature Resistance	-50℃ to +150℃	ASTM D2000
Certification	ISO9001, CE, API Spec 7K7

Bauer Parts We Can Suppply

Brand: BAUER Vehicle type: DRILLINGS Model: BG18H
Group	Part code	Quantity
TRACK GROUP	VK1569F352700	2
TRACK CHAIN	VE1569B852	2
TRACK SHOE	VZ7622F3700	104
TRACK BOLT	VD4085G15	416
TRACK NUT	VD0418A17	416
ROLLER 1 FL	VA140500	20
CARRIER ROLLER	VC1569E0	4
IDLER	VP1405A4	2
Brand: BAUER Vehicle type: DRILLINGS Model: BG24
Group	Part code	Quantity
TRACK GROUP	VK04030352700	2
TRACK CHAIN	VE04030852	2
TRACK SHOE	VZ040303700	104
TRACK BOLT	VD0414S15	416
TRACK NUT	VD0414S17	416
ROLLER 1 FL	VA1406A0	18
Brand: BAUER Vehicle type: DRILLINGS Model: BG25
Group	Part code	Quantity
TRACK GROUP	VK1569F359700	2
TRACK CHAIN	VE1569B859	2
TRACK SHOE	VZ7622F3700	110
TRACK BOLT	VD4085G15	440
TRACK NUT	VD0418A17	440
ROLLER 1 FL	VA140500	22
CARRIER ROLLER	VC010500	4
SEGMENT GROUP	VR3212C0	2
Brand: BAUER Vehicle type: DRILLINGS Model: BG36
Group	Part code	Quantity
TRACK GROUP	VK0135D355800	2
TRACK CHAIN	VE0135D655	2
TRACK SHOE	VZ4040B3800	110
TRACK BOLT	VD7640015	440
TRACK NUT	VD7655A17	440
ROLLER 1 FL	VA14070A	20
Brand: BAUER Vehicle type: DRILLINGS Model: BG40
Group	Part code	Quantity
TRACK GROUP	VL1408A3551000	2
TRACK CHAIN	VF1408A855	2
TRACK SHOE	VZ1408A31000	110
TRACK BOLT	VD1408A15	440
TRACK NUT	VD1408A17	440
ROLLER 1 FL	VA140800	20
CARRIER ROLLER	VC010800	4
