Heavy duty bucket for Mining excavator

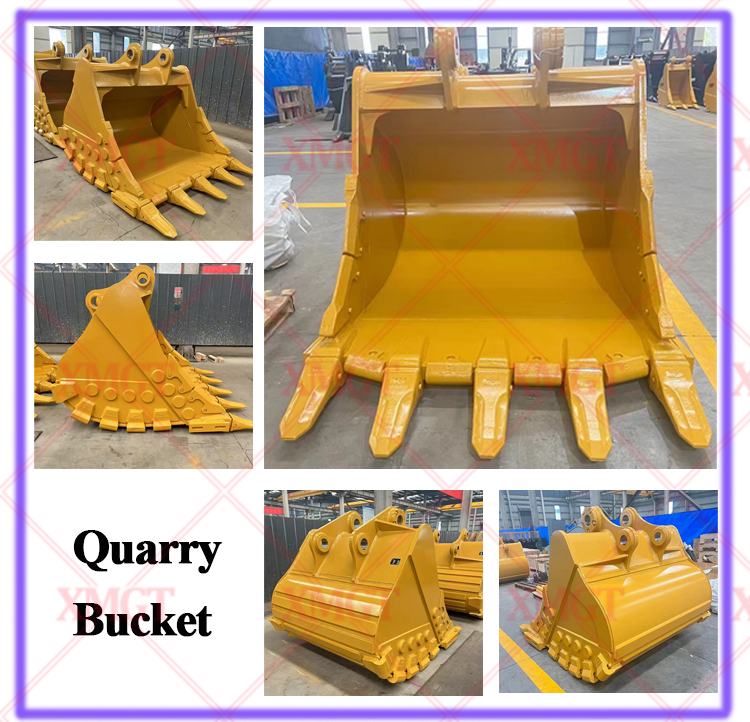

Mining Bucket Show
Mining Bucket Features
Product Features:
Designed specifically for mining operations, the Quarry Bucket delivers higher strength and longer service life. Based on the Rock Bucket, it is reinforced with additional wear blocks at the bottom—strengthening areas prone to cracking—making the bucket exceptionally durable.

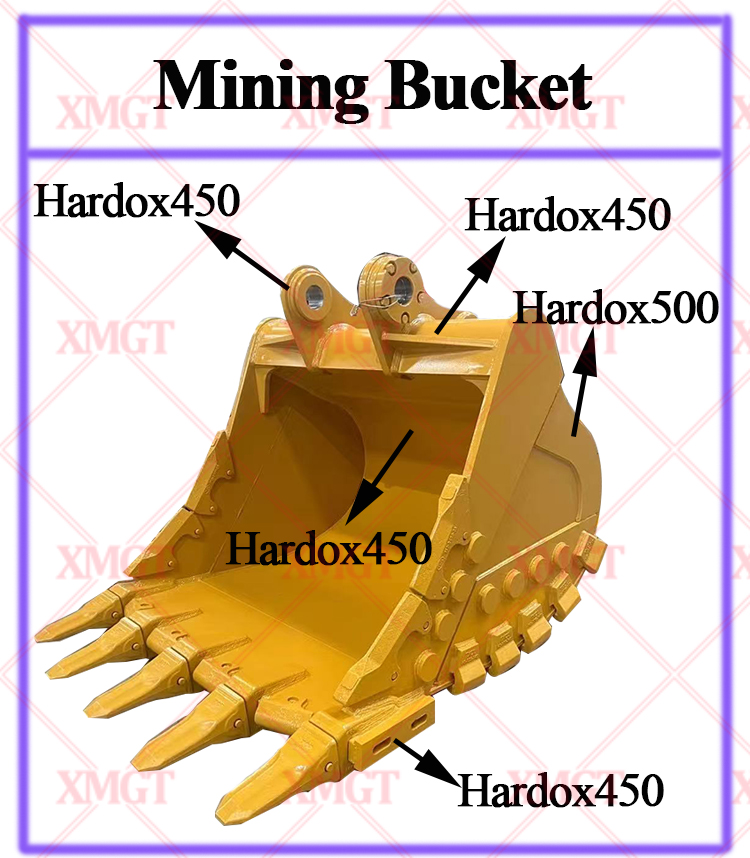

Constructed from Q345 + NM400 + HARDOX500 high wear-resistant steel, its lifespan is extended several times compared to standard buckets. It provides superior digging performance and outstanding cost efficiency.

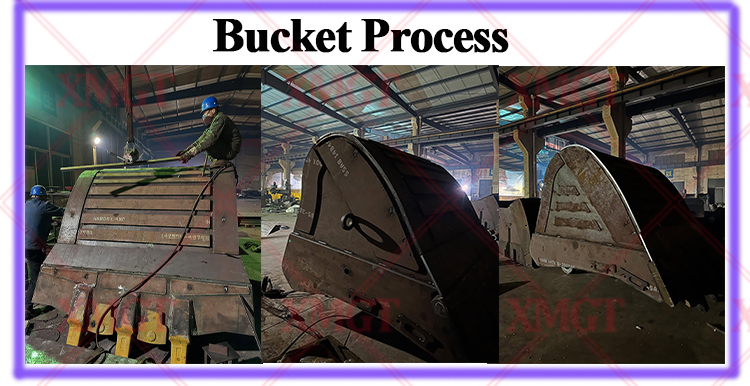

Mining Bucket Process
Mining Bucket Model we can supply
|
OEM |
Model |
Heaped Bucket Capacity |
|
Komatsu |
PC1250 | 6.7 m³ (8.8 yd³) |
| PC2000 | 12.0 m³ (15.7 yd³) | |
| PC3000 | 15–16 m³ (19.5–21.0 yd³) | |
| PC4000 | 22–38 m³ | |
| PC5500 | 26–29 m³ (34–38 yd³) | |
| PC7000 | 22–38 m³ | |
|
Hitachi |
EX1200 | 5.2–7.5 m³ |
| EX1900 | 11.0 m³ (14.4 yd³) | |
| EX2000 | 12–14 m³ | |
| EX2600 | 15–19.5 m³ | |
| EX3600 | 22–24 m³ | |
| EX5600 | 29–38.5 m³ | |
| EX8000 | 40–52 m³ | |
|
Caterpillar |
6015B | 5.8–12.0 m³ (7.6–15.7 yd³), typical 8.1 m³ |
| 6020B | 9.0–15.4 m³ (11.8–20.1 yd³) | |
| 6030 | 16.5–17.0 m³ (21.6–22.2 yd³) | |
| 6040 | 22.0 m³ (28.8 yd³) | |
| 6050 | 26–28 m³ (34–36.6 yd³) | |
| 6060 | 34 m³ (44.5 yd³) | |
|
Liebherr |
R 9100 | 7.0–7.3 m³ |
| R 9150 | 8.3–9.6 m³ | |
| R 9200 | 12.5 m³ | |
| R 9250 | 13–17 m³ | |
| R 9350 | 18.7 m³ | |
| R 9400 | 24.0 m³ | |
| R 996 | 33–34 m³ | |
| R 9800 | 42–47.5 m³ | |
|
Volvo |
EC950F | 3.9–7.0 m³ |
|
Doosan (Develon) |
DX1000LC | 5.4–6.8 m³ |
Mining Bucket Packing and Shipping
Applications: Ideal for heavy-duty operations such as excavating soils mixed with hard rock, semi-hard rock, and weathered stone, as well as loading blasted rock and other demanding quarry tasks.
