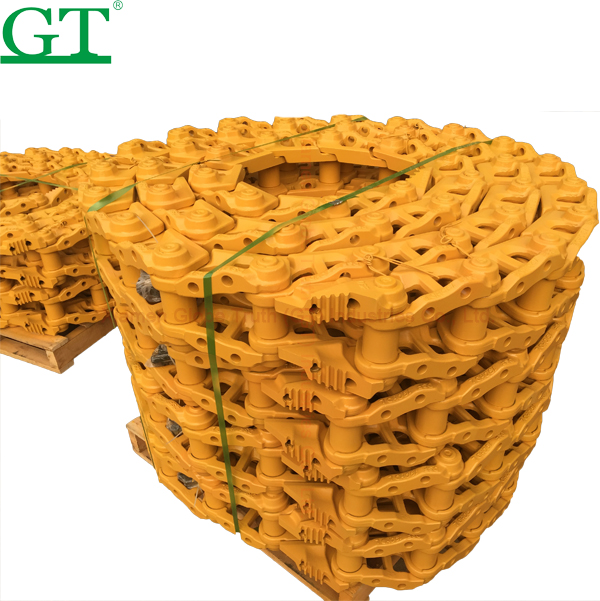

| General Information |
| CHAIN TYPE |
STEEL WASHER SEALED |
| MASTER PIN |
PRESS FIT TYPE |
| P/NO. |
Berco=CR3176(CR6010) , ITM=EZ163001M00000 |
| Style |
3/4" BOLT |
| Label |
Value |
Label |
Value |
Label |
Description |

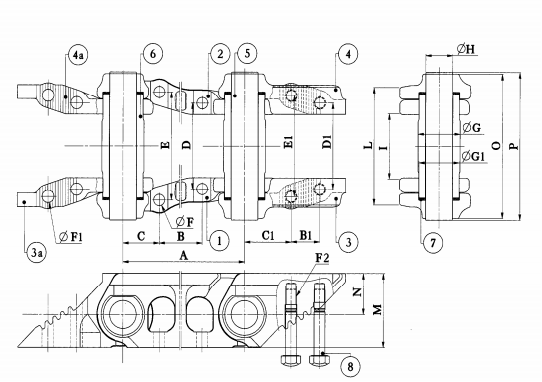

| A |
203.2mm |
ØH |
44.55mm |
1 |
TRACK LINK RH |
| B |
76.2mm |
I |
101.5mm |
2 |
TRACK LINK LH |
| C |
58.75mm |
L |
181.5mm |
3 |
PIN |
| D |
133.4mm |
M |
121.5mm |
4 |
MASTER PIN |
| E |
171.45mm |
N |
69.0mm |
5 |
BUSHING |
| ØF |
19.4mm |
O |
225.3mm |
6 |
MASTER BUSHING |
| ØG |
66.67mm |
P |
230.4mm |
7 |
SEAL (SPRING WASHER) |
| ØG1 |
66.67mm |
|
|
8 |
SPACER |

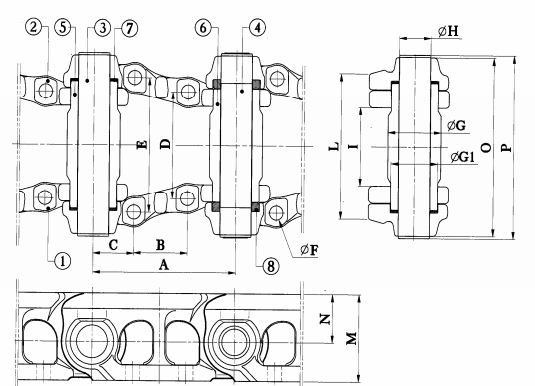

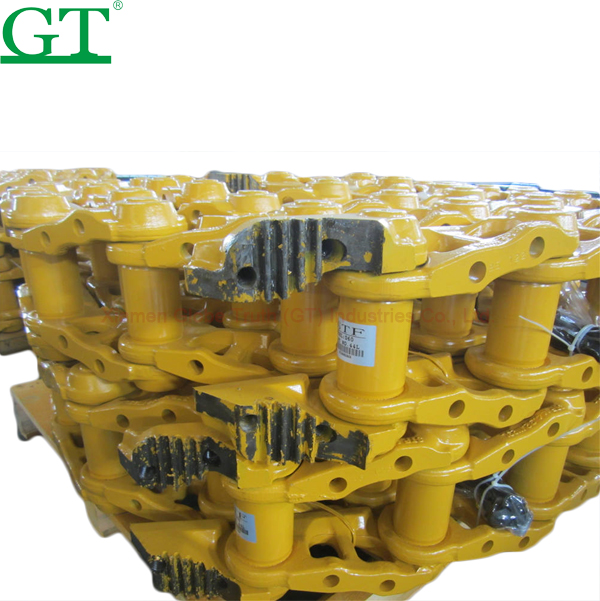

| CHAIN TYPE |
SPLIT |
| MASTER LINK |
SPLIT M/LINK ( CAT. TYPE ) |
| P/NO. |
Berco= CR3307 , ITM= DZ163001M00000 |
| Style |
3/4" BOLT |
| Label |
Value |
Label |
Value |
| A |
203.2mm |
F2 |
3/4"-16UNF |
| B |
76.2mm |
ØG |
70.0mm |
| C |
58.75mm |
ØG1 |
66.67mm |
| D |
133.4mm |
ØH |
44.55mm |
| E |
171.45mm |
I |
101.5mm |
| ØF |
19.4mm |
L |
181.5mm |
| B1 |
44.5mm |
M |
121.5mm |
| C1 |
78.0mm |
N |
69.0mm |
| D1 |
134.9mm |
O |
225.3mm |
| E1 |
158.8mm |
P |
230.2mm |
| ØF1 |
21.0mm |
|
|
