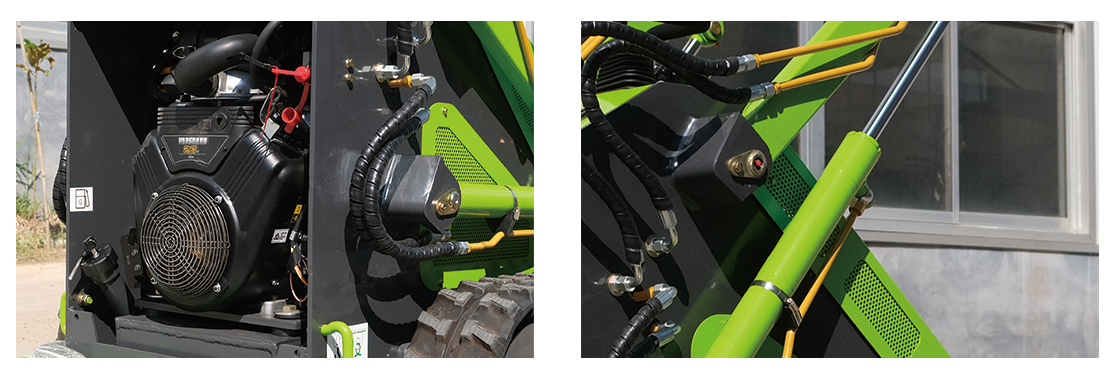

| Open hood, improve heat dissi-pation effect, easy maintenance |
| Coarse hydraulic cylinder,The lifting force is greater |

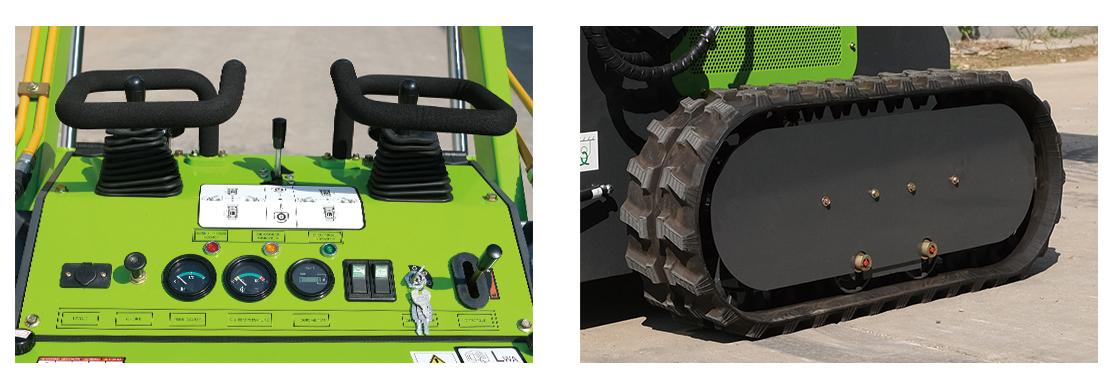

| Simple and convenient opera-tion, improve work efficiency |
| High quality rubber track, suitablefor a variety of complex terrain |
| Parameteter name |
280 |
380 |
| Max. working height |
2370mm |
2155 mm |
| Max.pin height(h1) |
1807mm |
1896 mm |
| Discharge distance of highest poin |
525mm |
348 mm |
| Max. unloading angle |
29° |
30° |
| Angle of collecting bucket |
36° |
25° |
| Departure angle |
14° |
12° |
| Total height |
1309mm |
1245 mm |
| Ground clearance |
150mm |
130 mm |
| Wheelbase |
652mm |
636 mm |
| Length without bucket |
1752mm |
1752 mm |
| Total width |
876mm |
1033 mm |
| Bucket width |
820mm |
980 mm |
| Total length(with bucket) |
2200mm |
2206 mm |
| Forward turning radius |
1440mm |
1307 mm |
| Rated power |
15.435kw |
15.435KW(21HP) |
| Calibration speed |
3600rpm |
3600 |
| Noise |
<95Db |
≤95 |
| Hydraulic system pressure |
17Mpa |
17Mpa |
| Loading |
165Kg |
200 Kg |
| Bucket volume |
0.12m³ |
0.15m³ |
| Max. lifting force |
375Kg |
375 Kg |
| Operating weight |
740kg |
886 Kg |
| Tyre model |
5.00-8 |
5.00-8 |
| Tires |
3.50D |
3.50D |

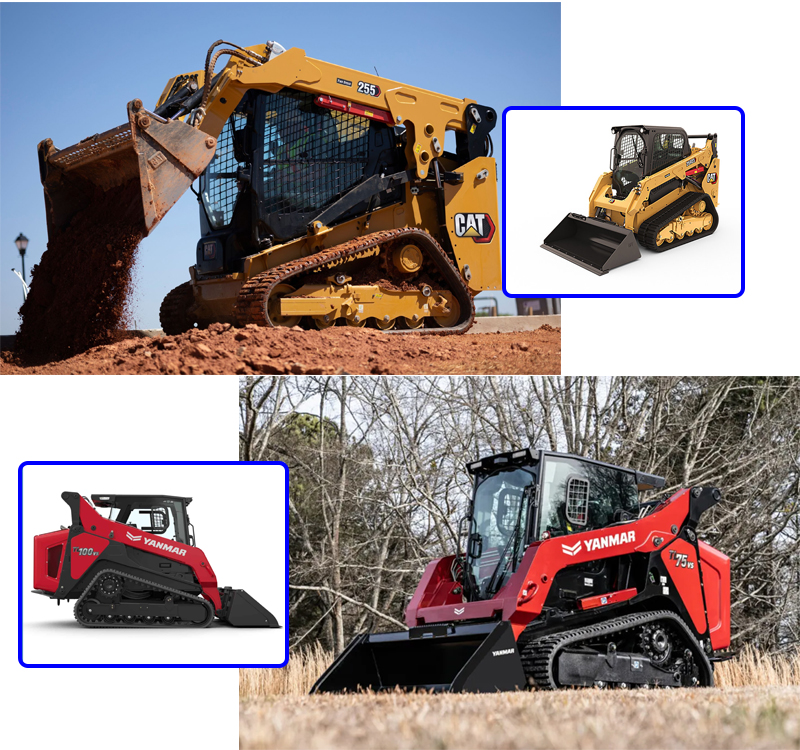

Compact Track Loader Application
Compact Track Loader Undercarriage
