Bogie Pin for Bulldozer Undercarriage

Short Description:

The bulldozer bogie pin is a critical component in the undercarriage system of tracked heavy equipment. It connects the carrier (or bogie) roller to the track frame, ensuring stable movement under extreme loads and harsh working conditions. Engineered for maximum durability and wear resistance, our bogie pins are designed to extend the service life of bulldozers operating in demanding environments such as mining, forestry, construction, and earthmoving.

Send email to us Download catalog

Product Detail

Product Tags

Bogie Pin Features

1.High-Strength Alloy Steel Construction
Manufactured from premium materials such as 40Cr, 42CrMo, or customized grades for superior load-bearing capacity.

2.Advanced Surface Hardening Treatments
Induction hardening or carburizing applied to critical areas to enhance surface hardness (HRC 50–58), ensuring excellent wear resistance and fatigue strength.

3.Precision Machining
CNC machining ensures tight tolerances, excellent concentricity, and seamless fit with mating components, minimizing vibration and premature wear.

4.Corrosion Protection
Surface treatments such as black oxide, zinc plating, or phosphate coating are available to resist corrosion in humid, abrasive, or chemical environments.

Bogie Pin Technical Specifications

Parameter	Typical Value / Range
Material	42CrMo / 40Cr / Custom Alloy
Surface Hardness	HRC 50–58 (Hardened Zones)
Outer Diameter (D)	Ø30–Ø100 mm (customizable)
Length (L)	150–450 mm
Roundness Tolerance	≤ 0.02 mm
Surface Finish (Ra)	≤ 0.8 μm
Surface Treatment Options	Induction Hardening, Carburizing, Black Oxide, Zinc, Phosphate
Compatible Models	Komatsu, Caterpillar, Shantui, Zoomlion, etc.

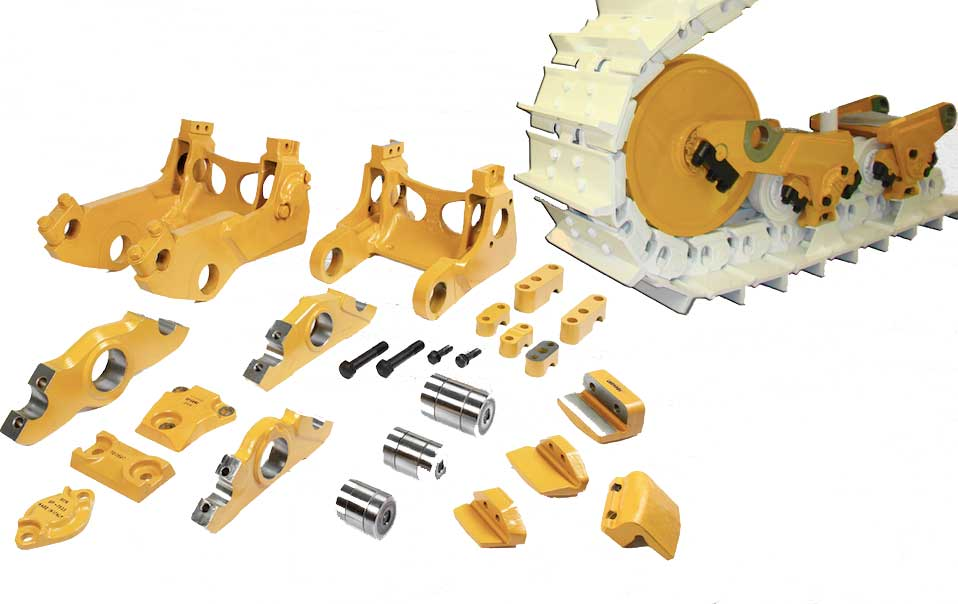

Bogie Pin Application

Model	Description	Part No.	Model	Description	Part No.
D8	Bogie Minor	7T-8555	D375	Bogie Minor	195-30-66520
	Guide	248-2987		Guide	195-30-67230
	Cap Roller	128-4026		Cap Roller	195-30-62141
	Cap Idler	306-9440		Cap Idler	195-30-51570
	Plate	7G-5221		Bogie Pin	195-30-62400
	Bogie Cover	9P-7823	D10	Bogie Minor	6T-1382
	Bogie Pin	7T-9307		Guide	184-4396
D9	Bogie Minor	7T-5420		Cap Roller	131-1650
	Guide	184-4395		Cap Idler	306-9447/306-9449
	Cap Roller	128-4026		Bogie Pin	7T-9309
	Cap Idler	306-9442/306-9444	D11	Bogie Minor	Left：261828, right：2618288
	Plate	7G-5221		Guide	187-3298
	Bogie Cover	9P-7823		Cap Roller	306-9435
	Bogie Pin	7T-9307		Cap Idler	306-9455/306-9457
D275	Bogie Minor	17M-30-56122		Bogie Pin	7T-9311
	Guide	17M-30-57131
	Cap Roller	17M-30-52140
	Cap Idler	17M-30-51480
	Bogie Pin	17M-30-56201
