Bauer Undercarriage Parts For Drilling Rig
Bauer Undercarriage PartsDescription
Key Features
1.Premium Material & Manufacturing
Material: 25MnB/23MnB steel with tempering & quenching heat treatment for enhanced wear resistance
Surface finish: Smooth machining, free from burrs or defects
2.Customization & Compatibility
Supports customized dimensions based on machine models or part numbers
Compatible with Bauer rigs (e.g., MC96, BG28) and other heavy machinery like crawler cranes .
3.Durability & Performance
1-year/2,500 working days warranty ensures long-term reliability
IP67/IP69K protection (optional) for harsh environments
4.Certifications
Compliant with ISO9001 and SGS standards
Bauer Undercarriage Parts Catalog
| Brand: BAUER Vehicle type: DRILLINGS Model: BG18H | ||
| Group | Part code | Quantity |
| TRACK GROUP | VK1569F352700 | 2 |
| TRACK CHAIN | VE1569B852 | 2 |
| TRACK SHOE | VZ7622F3700 | 104 |
| TRACK BOLT | VD4085G15 | 416 |
| TRACK NUT | VD0418A17 | 416 |
| ROLLER 1 FL | VA140500 | 20 |
| CARRIER ROLLER | VC1569E0 | 4 |
| IDLER | VP1405A4 | 2 |
| Brand: BAUER Vehicle type: DRILLINGS Model: BG24 | ||
| Group | Part code | Quantity |
| TRACK GROUP | VK04030352700 | 2 |
| TRACK CHAIN | VE04030852 | 2 |
| TRACK SHOE | VZ040303700 | 104 |
| TRACK BOLT | VD0414S15 | 416 |
| TRACK NUT | VD0414S17 | 416 |
| ROLLER 1 FL | VA1406A0 | 18 |
| Brand: BAUER Vehicle type: DRILLINGS Model: BG25 | ||
| Group | Part code | Quantity |
| TRACK GROUP | VK1569F359700 | 2 |
| TRACK CHAIN | VE1569B859 | 2 |
| TRACK SHOE | VZ7622F3700 | 110 |
| TRACK BOLT | VD4085G15 | 440 |
| TRACK NUT | VD0418A17 | 440 |
| ROLLER 1 FL | VA140500 | 22 |
| CARRIER ROLLER | VC010500 | 4 |
| SEGMENT GROUP | VR3212C0 | 2 |
| Brand: BAUER Vehicle type: DRILLINGS Model: BG36 | ||
| Group | Part code | Quantity |
| TRACK GROUP | VK0135D355800 | 2 |
| TRACK CHAIN | VE0135D655 | 2 |
| TRACK SHOE | VZ4040B3800 | 110 |
| TRACK BOLT | VD7640015 | 440 |
| TRACK NUT | VD7655A17 | 440 |
| ROLLER 1 FL | VA14070A | 20 |
| Brand: BAUER Vehicle type: DRILLINGS Model: BG40 | ||
| Group | Part code | Quantity |
| TRACK GROUP | VL1408A3551000 | 2 |
| TRACK CHAIN | VF1408A855 | 2 |
| TRACK SHOE | VZ1408A31000 | 110 |
| TRACK BOLT | VD1408A15 | 440 |
| TRACK NUT | VD1408A17 | 440 |
| ROLLER 1 FL | VA140800 | 20 |
| CARRIER ROLLER | VC010800 | 4 |

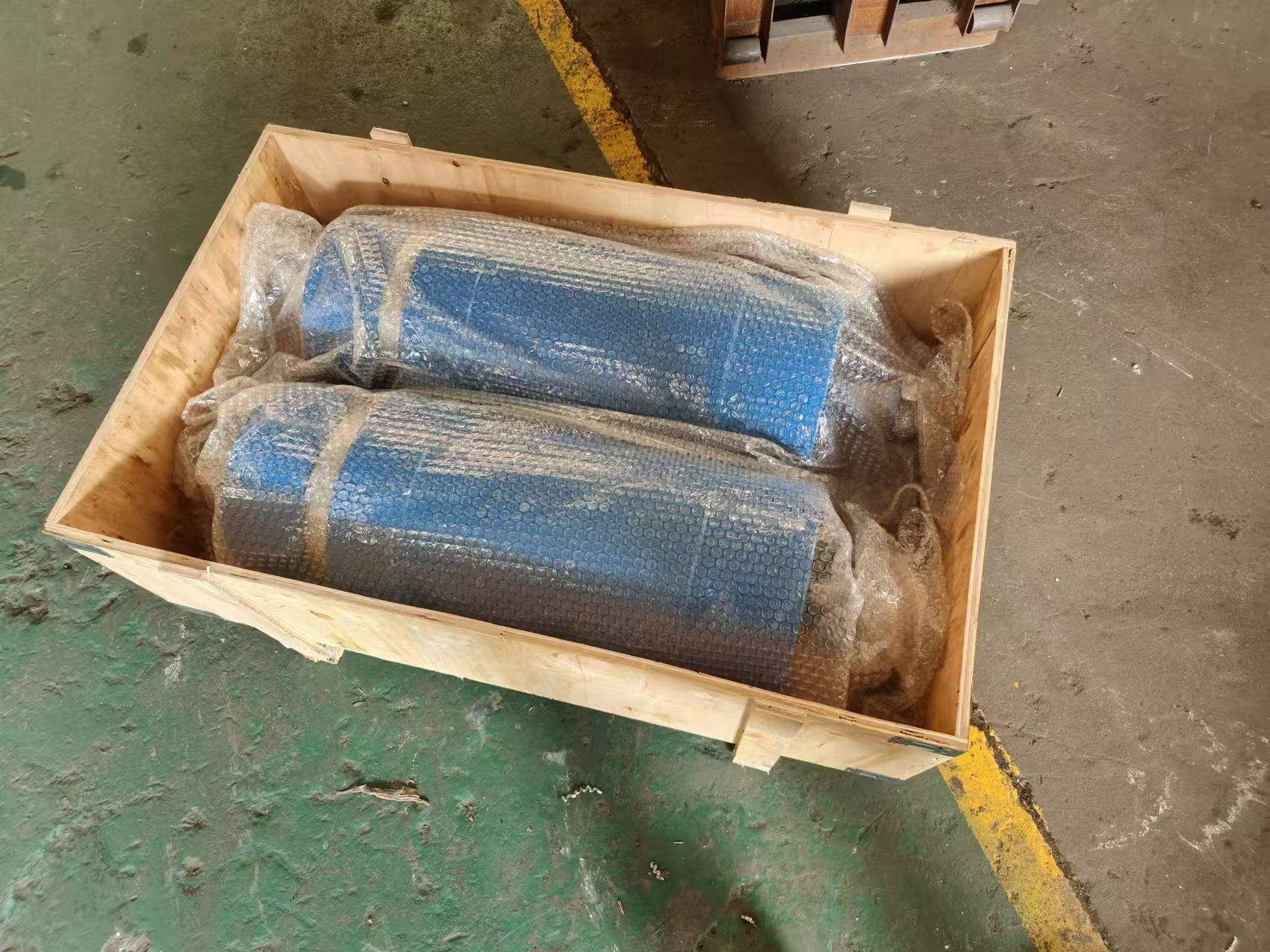

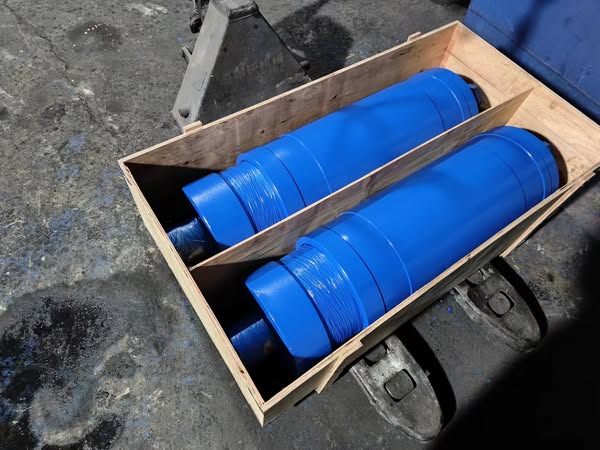

Bauer Undercarriage Parts Packing
