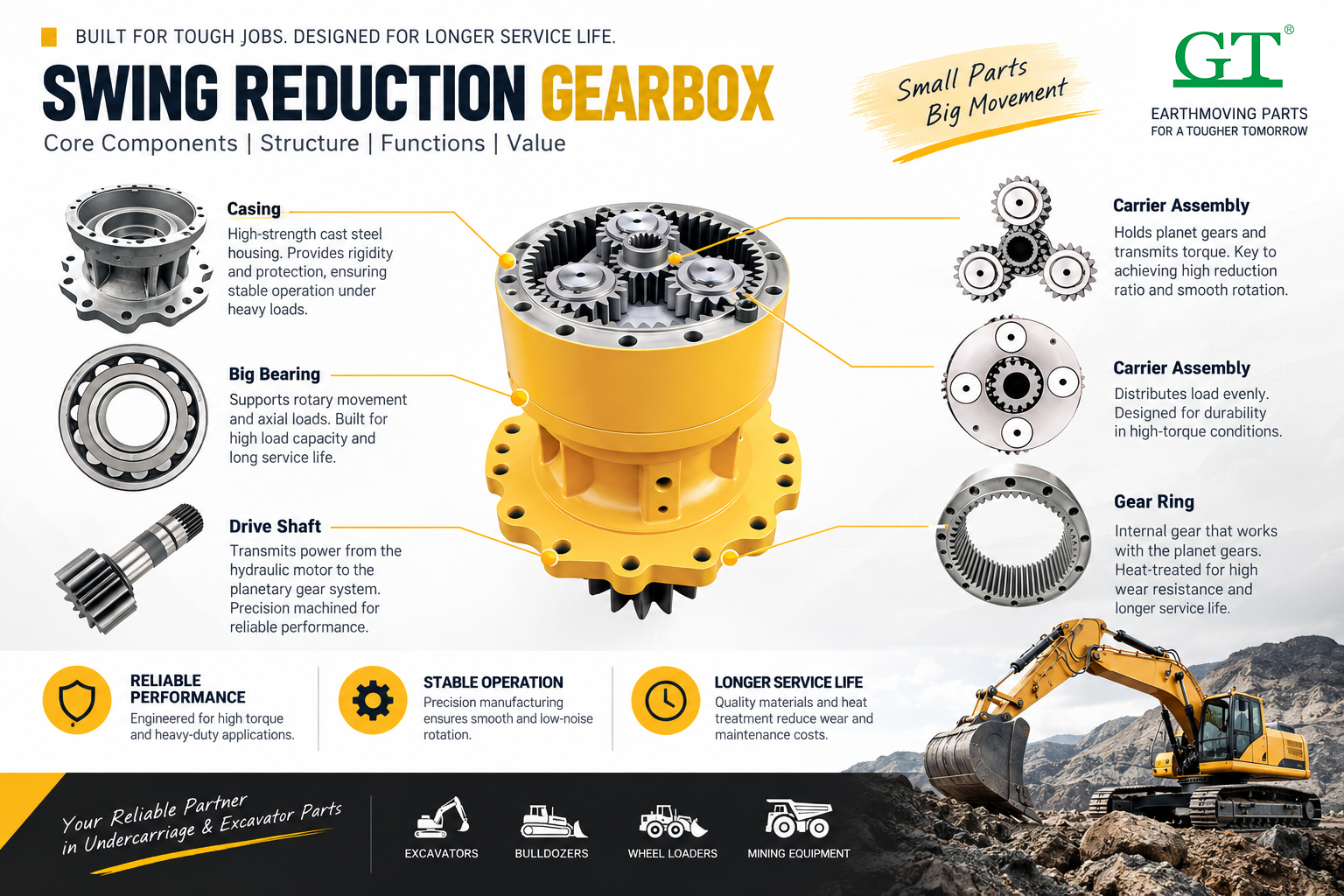

When you move the joystick and send the upper structure rotating smoothly through 360°, the assembly quietly doing the work is far more precise than any undercarriage component — the swing reduction gearbox. Compact in size, it's built from a casing, big bearing, drive shaft, carrier assembly, gear ring, and planet gears working in concert — and it determines whether your machine swings smoothly and positions accurately.
I. What Makes Up the Swing System?
An excavator's swing function is a complete power chain:
|
Component |
Function |
| Swing Motor | Converts hydraulic energy into high-speed, low-torque rotation |
| Swing Reduction Gearbox | Uses planetary gear stages to reduce speed and multiply torque |
| Pinion Gear | Output gear that meshes with the slewing ring gear |
| Slewing Ring | Carries the upper structure's weight and serves as the rotation track |
| Swing Brake | Typically spring-applied, hydraulically released — prevents drift on slopes |
| Anti-Rebound Valve | Cushions start/stop shocks to prevent body sway |
Power Flow: Hydraulic pump → swing motor → drive shaft → planetary gear system → output pinion → slewing ring → upper structure rotation.
II. Inside the Gearbox: Six Core Components
1. Casing
A high-strength cast steel housing that provides rigidity and protection, ensuring stable operation under heavy loads. Casing rigidity directly determines whether gear meshing stays stable — deformation causes off-center loading, a hidden cause of tooth breakage.
2. Big Bearing
Supports rotary movement and axial loads. Because it must also resist the overturning moment generated during digging, it requires high load capacity and long service life — making it one of the most highly stressed components in the gearbox.
3. Drive Shaft
A precision-machined splined shaft that transmits power from the hydraulic motor into the planetary gear system. Spline precision and heat treatment quality determine transmission reliability and noise level.
4. Carrier Assembly
The key component for achieving a high reduction ratio and smooth rotation. It holds the planet gears and transmits torque, while distributing load evenly across all planets — a symmetrical load path that keeps the gearbox durable and smooth under high-torque conditions.
5. Planet Gears
Multiple gears arranged symmetrically, orbiting inside the carrier and meshing with the gear ring to complete speed reduction and torque multiplication.
6. Gear Ring
The internal gear that works with the planet gears. It is heat-treated for high wear resistance and longer service life.
The critical metric — Backlash: Backlash is the tiny clearance between meshing gear surfaces. It must be neither too large nor too small:
Too tight: Gears bind, generating heat and noise; in severe cases, tooth surfaces scuff and burn.
Too loose: Impact loads develop; risk of pitting and tooth breakage rises, and swing positioning accuracy degrades.
III. Common Failure Modes & Symptoms
|
Symptom |
Likely Cause |
| Cyclical clicking/rattling during swing | Gear pitting, broken teeth, or big bearing race spalling |
| Weak swing, reduced speed | Motor internal leakage, low relief pressure, or gearbox binding |
| Swing drift on slopes, won't hold | Failed swing brake or internal seal leakage |
| Increased play (free travel) | Excessive backlash, worn drive shaft splines |
| Oil weeping from gearbox base | Aged output shaft seal, or clogged breather raising internal pressure |
| Metal debris in the oil | Severe gear/bearing wear — stop and inspect immediately |
The #1 killer is actually the oil: Most early swing gearbox failures trace back not to gear material quality, but to lubricant contamination. Once water, dust, or metal particles enter, they become a continuous abrasive — accelerating fatigue on both gear faces and the big bearing.
IV. Maintenance: Four Non-Negotiable Actions
Change the Oil on Schedule: Swing gearbox intervals are far shorter than engine oil. Follow your manual strictly (commonly every 1,000-2,000 hours or semi-annually; shorten under harsh conditions).
Sample the Oil for Analysis: Testing for iron content, moisture, and particle count can reveal abnormal trends 200-500 hours before visible gear damage.
Check Backlash and Mounting Bolts: Measure swing play with a dial indicator; re-torque mounting bolts to specification — loose bolts create casing off-center loading and alter backlash.
Keep the Breather Clear: A clogged breather raises internal pressure, pushes oil out past the seals, and ultimately causes oil starvation and seizure.
V. Selection & Sourcing Advice
When replacing a swing reduction gearbox, always verify:
Machine model and year (same model, different years may use different gearboxes).
Reduction ratio — must match the original.
Mounting flange dimensions and spline specifications.
Rotation direction definition (especially when replacing the motor).
Whether a swing brake is included, and its release pressure.
As a heavy equipment parts supplier, GT (Xiamen Globe Truth) advises: a swing reduction gearbox is a high-precision assembly that must be matched strictly to machine specifications. We also recommend inspecting the slewing ring and output pinion at the same time — all three form one meshing system, and excessive wear in any one accelerates failure in the other two.
V. Selection & Sourcing Advice
The swing reduction gearbox is small, but it's the dividing line between "smooth" and "brutal." From the cast steel casing to the big bearing, from the drive shaft to the carrier assembly and gear ring, every link depends on precision manufacturing and correct maintenance. Manage the oil, keep to inspection intervals, and it will deliver thousands of hours of precise rotation.
