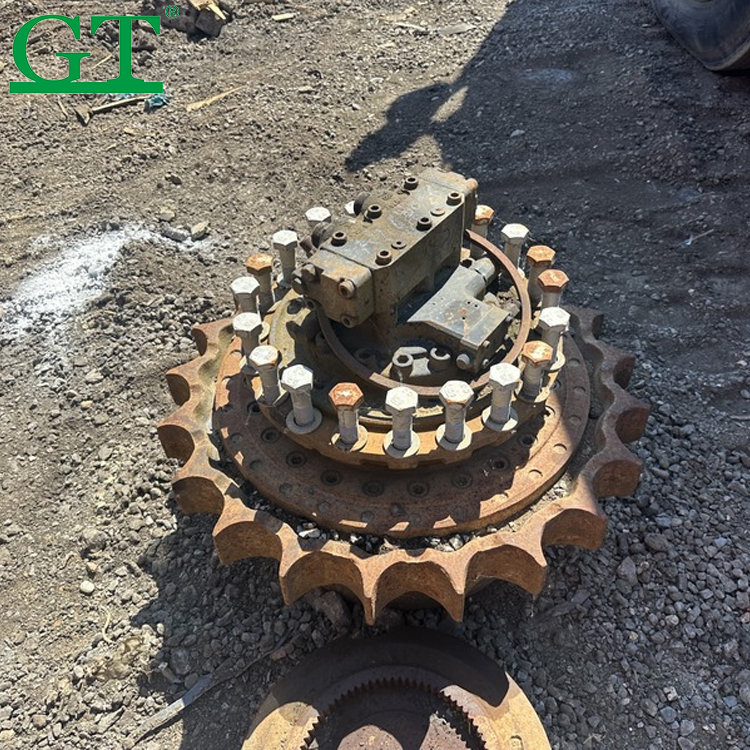

In an excavator's travel system, the final drive is the source of power and the sprocket is the exit point. The two are joined by a ring of bolts, forming the most highly stressed connection on the entire machine.
Many owners treat the sprocket as a "cheap wear item" and swap it casually. In reality, getting the sprocket-to-final-drive match wrong often costs you an entire final drive. This article introduces the "Three-Level Matching Rule" to help you understand this relationship completely.
I. Level One: Mechanical Interface Match (Will it fit — and will it sit true?)
The most basic layer, and the easiest to get wrong. The sprocket-to-final-drive connection involves four critical dimensions:
|
Matching Item |
Description |
Consequence of Mismatch |
| Bolt pattern & PCD | Bolt circle diameter and hole count must match exactly | Won't mount; forced reaming creates off-center loading |
| Register diameter | The locating fit between the sprocket bore and the final drive output flange | Excessive clearance destroys concentricity, causing eccentric wobble in operation |
| Bolt specification & grade | Diameter, length, strength grade (e.g., Class 10.9 / 12.9) | Substituting standard bolts for high-strength bolts → fatigue shear failure |
| Flange flatness & offset | The mating surface and axial offset between sprocket and flange | Poor contact decays bolt preload and crushes seals |
II. Level Two: Kinematic Match (Does it travel at the right speed, accurately?)
The sprocket's tooth count × pitch determines its "effective rolling radius," which directly determines travel speed.
Core relationship (conceptual):
Travel speed ∝ final drive output speed × sprocket effective radius Sprocket effective radius ≈ pitch × tooth count ÷ (2π)
Hence one iron rule: When replacing a sprocket, the tooth count must exactly match the original.
|
Change |
Consequence |
| More teeth | Faster travel, lower tractive effort; hydraulic system balance shifts, changing travel motor load characteristics |
| Fewer teeth | Slower travel, higher tractive effort; may cause hydraulic relief heating and higher fuel consumption |
| Wrong pitch | Poor chain engagement, violent impacts, and rapid destruction of both chain and sprocket |
III. Level Three: Dynamic Match (Can it absorb the shock?)
The most overlooked layer — and the one with the greatest impact on final drive life.

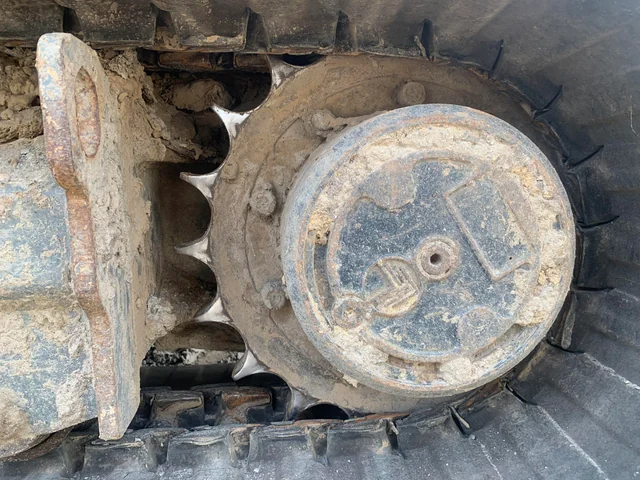

The "fuse effect": The sprocket is the first component in the power chain to meet external impact. When tooth profiles are healthy, engagement with the chain bushings is continuous and smooth. But once teeth wear into a "shark fin" (scalloped/hooked) shape, engagement becomes intermittent hammering.
These impacts travel upward through the output flange → output shaft → carrier → gears → big bearing, ultimately appearing as:
-Planet gear pitting and tooth breakage;
-Bearing race spalling;
-Vibration-induced failure of the output shaft seal, leading to oil leaks.
So the sprocket is essentially a "fuse": cheap to wear out, yet it absorbs every impact on behalf of the final drive. Replacing it as soon as the tooth tips begin to sharpen is the most cost-effective investment you can make to protect your final drive.
IV. Sprocket Types: One-Piece vs. Segmented
|
Type |
Characteristics |
Best For |
| One-Piece | Cast/forged as a single unit; high rigidity, good concentricity, lower cost | Small and mid-size excavators, normal conditions |
| Segmented Rim | Rim uses multiple bolted segments; worn sections replaced individually | Large machines and mining/heavy-duty applications with better maintenance economics |
Note: With segmented rims, the precision of the joints between segments is critical. Misaligned joints cause the chain to "jump teeth," sending shock straight into the final drive.
V. Inspection & Maintenance Checklist
|
Item |
Method |
Judgment Standard |
| Tooth profile wear | Visual + template comparison | Replace once tips show obvious hooking/sharpening |
| Tooth thickness | Caliper measurement of tip width | Replace when below 25% of original |
| Bolt torque | Re-check with torque wrench | Must meet manual specification |
| Cracks at bolt holes | Visual + dye penetrant inspection | Any crack → replace sprocket immediately |
| Register fit clearance | Feeler gauge | Out of tolerance means flange or sprocket is worn |
| Uneven tooth wear | Observe contact pattern | One-sided wear indicates poor alignment or machine drift |
Replacement rhythm: Never install an old sprocket on a new chain. A new chain has precise pitch, and the old sprocket's hooked teeth will immediately chew up the new bushings — the classic case of "saving pennies, losing thousands."
VI. Sourcing Checklist
When ordering a sprocket, always provide:
1.Machine model + year;
2.Tooth count — must match the original;
3.Pitch specification;
4.Bolt hole count and PCD;
5.Register diameter;
6.One-piece or segmented;
7.Matching final drive model (if replacing both).
As a heavy equipment parts supplier, GT (Xiamen Globe Truth) reminds you: the sprocket and final drive form one meshing and load-bearing system — the condition of either affects the other. We recommend inspecting the final drive output shaft seal and bolt holes when replacing a sprocket, and evaluating the remaining life of the sprocket and chain when replacing a final drive.
Conclusion
A sprocket isn't expensive — but it determines the fate of your final drive. Get the Three-Level Match right — mount it true, match the tooth count, and absorb the shock — and a part costing tens of dollars will protect an assembly worth thousands.
